| Product Name | 47 x 59 Inches Clamp Type Manual Screen Stretching Machine Screen Printing Stretcherer SPE120150 |
| Item NO. | SPE120150-006264 |
| Weight | 200 kg = 440.9245 lb = 7054.7924 oz |
| Volume | 0.97 CBM |
| Category | Screen Printing > Stretchers |
| Creation Time | 2020-10-08 |

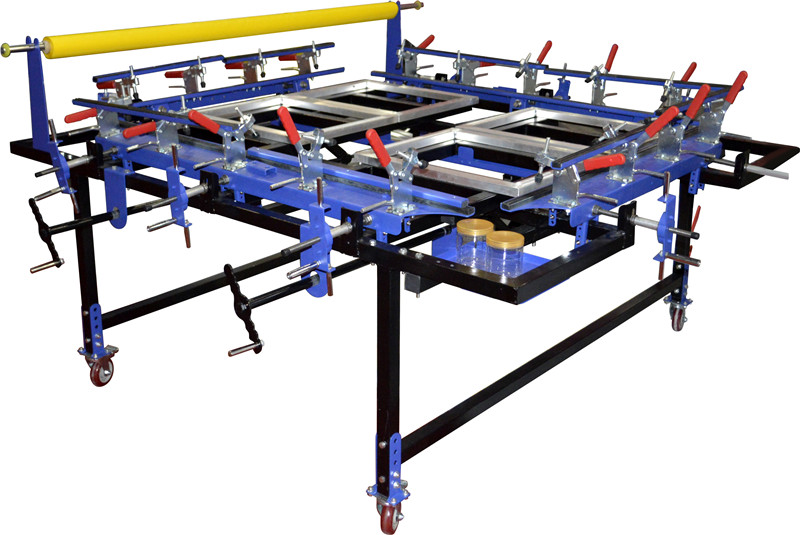

47 x 59 Inches Clamp Type Manual Screen Stretching Machine Screen Printing Stretcherer SPE120150
The machine can stretch different sizes screen frames within outer size 120*150cm,
the tension of the screen frame can reach 22N .
The functions and features of this machine:
1. The machine adopts a combined design: After installation, the size of the machine is 2.4 x 2.3 x 0.8 m, and the volume is 4.4 cubic meters; The outer packing size of the machine is 1.6 x 0.65 x 0.5 m, and the package volume is 0.52 cubic meters. Packaging volume is only 12% of the size of the whole machine; The machine is equipped with a full set of installation tools, users only need to follow the installation instructions to install the whole machine easily.
2. The machine is packaged with export standard fumigation-free board, and all parts are separated by foam board. Ensure that all parts do not knock against wear, transportation is safer. At the same time because of the small size of the package, freight is cheaper, especially suitable for export container transport.
3. The surface of all metal parts of the machine are electrostatic spraying treatment, acid and alkali corrosion resistance; Anti - friction cleaning, perennial use does not fade.
4. There are mesh clamp handle to increase bar support, and it is more labor-saving to press the handle.
5. Pressure rubber strip using M type design, and rubber strip using high quality rubber, tasteless, moderate hardness. Pressure is more stronger.
6. There are 6 pieces aluminum alloy beams installed on the frame placement platform of this machine. The distance between the beams is 18 cm, which can be suitable for placing single or multiple simultaneously stretching mesh of various sizes within 1.2 x 1.5 meters of the outer diameter.
7. The machine adopts double lifting table rocker, lifting up the screen frame is more stable after gluing.
8. The height of the whole machine can be adjusted in 9 cm according to the needs of the operator.
9. The machine is installed with brake castor, according to the need the operator can move the machine or brake positioning machine.
10. There is a bar installed on the top of the machine to place mesh . After installation mesh can be dragged to fit the screen frame. It is more convenient, faster and cleaner to press the mesh.
11. The machine is specially equipped with two 22 x 15cm storage racks at both ends of the machine, which can be used to place materials and tools.
12. The machine is equipped with three layers mesh rack between two legs, which can be placed 5 rolls mesh.
Operation methods of the stretcher:
1. Put the lifting platform to the lowest.
2. Place the screen frame on the lifting platform and put the screen frame coating glue upward.
3. Evenly coating glue on the screen frame and place it for a moment (due to different ambient temperature, glue and glue volatilization time).
4. Spread the mesh after the coated surface is not too sticky, Try to straighten the mesh all around with a clamp.
5. Turn the hand wheel to tighten the mesh from the four directions; Turn two or three hand wheels evenly from the same direction to ensure the mesh tension strengthen step by step.
6. In order to ensure that the mesh can be evenly stretched without tearing, try not to stretch it in one step . Two or three steps can be adopted:
Step 1: Stretch the mesh to a slightly tight state (using the tension meter measured in 5-8 N), paused for 5-10 minutes, let the mesh fully extended;
Step 2: Turn the hand wheel again to tighten the mesh (using the tension meter measured in 12-15 N), paused for 5-10 minutes, let the mesh stretched again; (need 12--15 N tension mesh can be used)
Step 3: Turn the hand wheel again to tighten the mesh (using the tension meter measured in 20-24N above);
7. Turn the handle of the lifting platform to lift the screen frame to contact the mesh, and evenly coating glue on the contact surface between the screen plate and the mesh;
8. After the glue is dried and solidified, loosen the hand wheel, open the clamp and take out the screen frame.
9. Complete the stretching work.
Installation step:
|
Product Code |
006264 |
|
Product Name |
SPE120150 type 22N manual screen stretcher |
|
HS code |
8447909000 |
|
Product Color |
Blue, black |
|
Machine using material |
steel plate |
|
Machine surface treatment |
Electrostatic spraying |
|
Attachment material |
Stainless steel or zinc plating, nickel plating |
|
Net weight |
396.8lb |
|
Gross weight |
436.5lb |
|
Packing size |
81.1*23*18.1in, 60.8*18.1* 21.6in |
|
Packing volume |
0.97 m³ |
|
Packing material |
Export wooden carton |
