| Product Name | 80*100cm Football Shirt Large Grande Hydraulic Sublimation Heat Press Machine |
| Item NO. | JC-8B-80*100cm |
| Weight | 500 kg = 1102.3113 lb = 17636.9810 oz |
| Volume | 6.3 CBM |
| Category | Sublimation > Sublimation Machine > Large Format Heat Press Machines |
| Creation Time | 2020-09-27 |

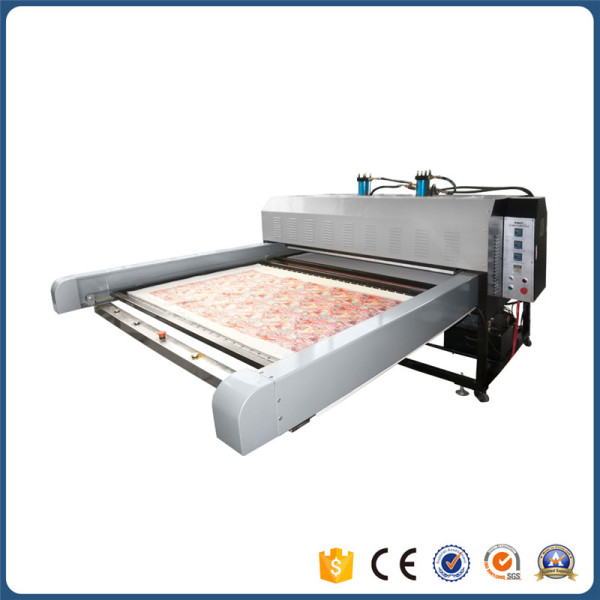

80*100cm Football Shirt Large Grande Hydraulic Sublimation Heat Press Machine
Type: Heat Press Machine
Condition: New
Plate Type: Heat Press Transfer Sports Wear
Place Of Origin: China
Model Number: J-C8B (Hydraulic)
Usage: For Sublimation Garments,Clothes
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 380/220V
Gross Power: 11Kw
Dimensions(L*W*H):175 X 122 X 178cm
Weight: 500kg
Certification: CE
Machine Color: Multicolor
Print Area: 80*100Cm
Temperature Range: 0-399℃
Timer Control: 0-999sec.
Warranty Time: 1 Year
System: Hydraulic
Working Area: Can Up And Down Circle Work
Factory: Yes
Moq: 1 Set
Hs Code: 8443399000
After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Specifications
1.Accurate and uniform colour transfer
2.With hydraulic system,can work directly
3.up and down platen at the same side
Technical parameters
|
Voltage(V) |
220/380 |
|||
|
Power(KW) |
11 |
16 |
18 |
|
|
Temperature range(°C) |
0-399℃ |
|||
|
Time control(S) |
0-999sec. |
|||
|
Printing area(CM2) |
80 X 100 |
100 X 120 |
120 X 150 |
|
|
Packing size (CM3) |
Mainframe |
175 X 122 X 178 |
196 X 142 X 180 |
245 X 165 X 180 |
|
Track |
271 X 141 X 33 |
308 X 161 X 33 |
328 X 181 X 33 |
|
|
Net Weight(KG) |
500 |
650 |
850 |
|
Feature
1. Employ single-side and work in upward and downward circulating to get an effect of saving labor and high printing speed.
2. Using cast aluminum for the bottom board, it is flat and good for heat press of many kinds paintings.
3.Manual or automatic control, the adjustable pressure of hydraulic can reach 30kg/cm2.
4. The process is controlled by digital, saves power and the thermal energy distribute averagely.
5.Intelligent instrument and digital display of temperature and time, the readout temperature tolerance of which is +-2°C.
6. Adjust the temperature and the timer according to the thickness of the materials. For example, heat sublimation canvas bag need higher temperature(about 230℃) and longer time(about 24sec.)
Finished products
2. Q: How to choose the right heat press?
As with any equipment, there are many factors to take into consideration when choosing a heat press machine.
The most important thing to look for in a heat press is its ability to provide consistently even temperatures across the platen. This will prevent cold spots from developing and ensure consistent application of heat transfer materials. Proper application temperature is also critical in producing quality garments, making accurate temperature controls an essential feature.
3. Q: What items can be heat pressed?
The following are some of the far more common items often heat pressed. The list by no means ends here.
T-Shirts, Caps, Ceramic Plates, Ceramic Tiles, Mugs, Mouse Pads, Paper Memo Cubes, Tote Bags, Jigsaw Puzzles, Lettering, Numbers, Rhinestones/Crystals, Wood / Metals Other Misc. Fabrics & Materials.
4.Q: What is a transfer made up of ?
A transfer is made up of a carrier paper and inks. When heated to a certain temperature and pressed with a significant amount of pressure for a certain amount of time, the transfer inks are passed over to the transferable material. Some inks are adhered and embedded to the surface of the material, while others (namely, sublimation) permeate the coating of the material.
5.Q: What are the different uses for a heat press?
The variety of uses for a heat press include the application of various types of heat applied materials (listed below), curing of Direct to Garment (DTG) printing, smoothing of embroidery after sewing, and dye sublimation.
6.Q: What will be need if doing heat transfer?
You will need a heat transfer machine(kinds of heat press for choices, if transfer t-shirt, you will need a flat heat press, if transfer cap, you would need a cap press or our combo press etc.) printer, CISS, ink, transfer paper.
7. Q: What kind of paper do I need?
For sublimation there are different papers developed for different substrates.Mouse pad,bags,fabrics are best transferred using our special transfer paper.When transferring items such as ceramics,glass,you can use normal inkjet paper.
8.Q: What can I decorate using a heat press?
The variety of uses for a heat press include the application of various types of heat applied materials (listed below), curing of Direct to Garment (DTG) printing, smoothing of embroidery after sewing, and dye sublimation.
The list of items (or substrates) that can be imprinted using a heat press or mug heat press is constantly growing. Typically, apparel such as T-shirts, golf shirts, and sweatshirts and pants come to mind when one thinks of heat pressing. But with the ever-evolving heat press industry items like caps, nylon jackets and bags, canvas bags, spandex and neoprene garments, and even coffee mugs can be customized using heat applied material. Below is an extensive list of heat press ideas.
