| Product Name | IP67 DC12V LED Channel Letter Module M21GX22A |
| Item NO. | LED-MZ-M21GX22A |
| Weight | 0.01 kg = 0.0220 lb = 0.3527 oz |
| Category | LED > LED Module > Led Channel Letter Module |
| Creation Time | 2020-09-22 |

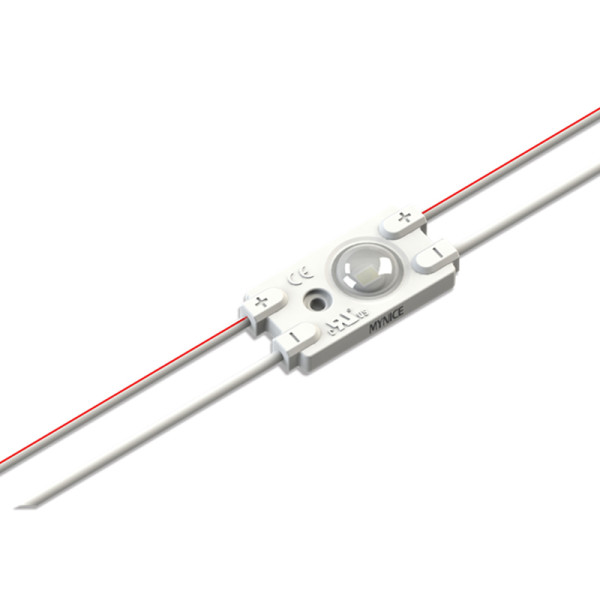

IP67 DC12V LED Channel Letter Module M21GX22A
Technical data
◆ Input Voltage: DC 12V
◆ Power: 0.36W / pc
◆ Lumen: 36lm / pcs
◆ Lifetime: > 50000 hours
◆ Color: Warm White, Pure White, Red, Yellow,Green
Product advantages
◆ Bigger 170° Beam Angle, High Uniformity LENS;
◆ IP Level: IP67；
◆ Used in ultra-thin boxes and channel letters;

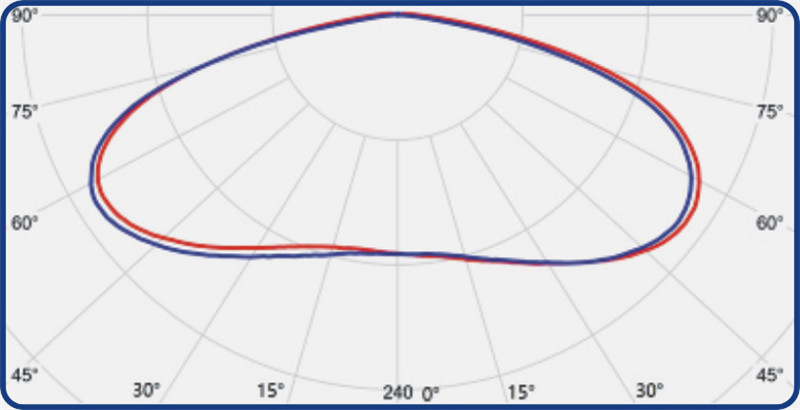

Optical data distribution

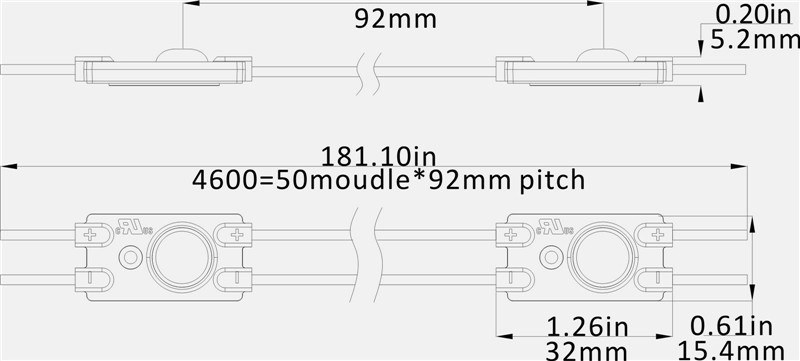

Dimensional drawing

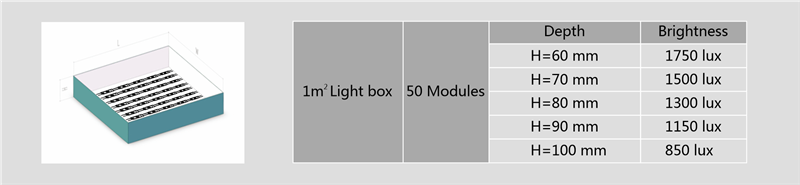

Application notes
