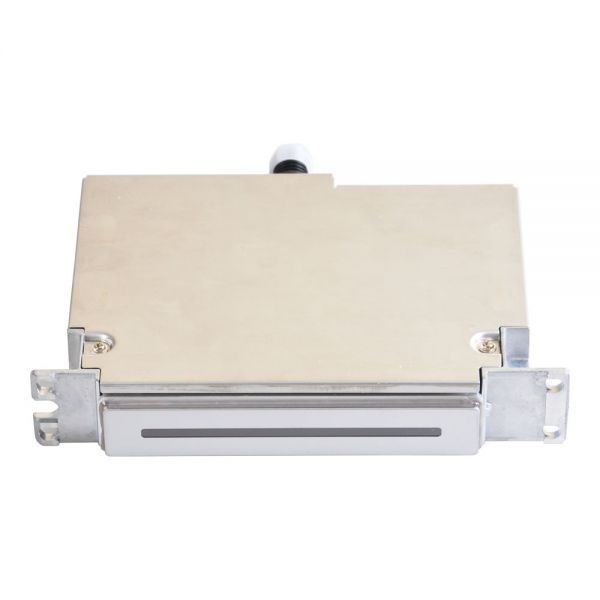

Original Seiko SPT-1020 / 35PL Printhead

Copy and share this link on social network or send it to your friends

Copy

Original Seiko SPT-1020 / 35PL Printhead Item NO.: CPS--SPT-003-3766

Write a Review
US$ 1220.00
Quantity:
Shipping Cost:
Estimate Shipping Cost
Product Name Original Seiko SPT-1020 / 35PL Printhead
Item NO. CPS--SPT-003-3766
Weight 0.5 kg = 1.1023 lb = 17.6370 oz
Category Digital Printing > Printhead > Seiko
Brand Seiko
Creation Time 2020-06-03

The Seiko SPT510 drop on demand piezo printhead is compatible with a wide-range of grand-format digital printers, including Infiniti printers FY 3206. Fully equipped with 510 active nozzles for high-resolution (720dpi) and high-speed (35 pl) printing and steel-plate protection for a longer life, this durable printhead lasts 4-5 times longer than many common128 printheads.


To be used with:
Icontek TW-3306FD, Icontek TW-3308FD, Icontek TW-1800F3, Icontek TW-2500F3, Icontek TW-3306FZ, Icontek TW-3308FZ, Icontek M5, Icontek M7, SID XC II, Crstaljet CJ-FB2506UV, Crstaljet S6306SPT1020_35PL, Crstaljet F6308SPT1020_35PL, Infiniti FY-3266K, Infiniti FY-3266H, Infiniti FY-3266J, Infiniti FY-3266R, Phoaeton UD-3266E, Phoaeton UD-3266G
Remarks: Original

Specifications
- Technology: Drop on demand Piezo Electric
- Active Nozzles: 510
- Native Resolution: 180 dpi
- Max Resolution: 720 dpi
- Drop Volume: 35 pl
- Firing Frequency: 6-8 Khz
- Linear Print Speed: 0.49 m/sec@360dpi

- Proprietary parrallel I/F: 30 pins



Attention:

1. The printhead is required to be installed by professional persons.

2. Due to the nature of printer parts and many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage. If there is any visible damage on the package, please contact us via email Chinapartsign@gmail.com

3. Please seriously pay attention to the information of printhead model while purchasing. Once received your item, please inspect if the printhead matches up with the model you required. If you have any problems, it is very important to contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
