| Product Name | Spectra Galaxy JA 256 / 30 AAA Printhead |
| Item NO. | CPS-SPE-011-16944 |
| Weight | 0.8 kg = 1.7637 lb = 28.2192 oz |
| Category | Digital Printing > Printhead > Spectra |
| Brand | Spectra |
| Creation Time | 2020-06-03 |

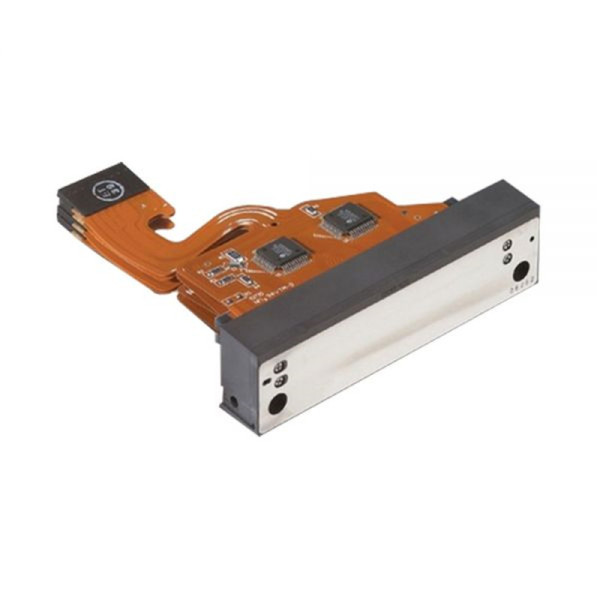

Spectra Galaxy JA 256 / 30 AAA Printhead
Description:
The Spectra Galaxy JA 256 / 30 AAA Printhead is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 900 dpi.
Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 nozzles. The nozzles are arranged in a single line, at a native 0.010 inch distance between nozzles.
The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible.
This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually.
To be used with:
Dilli Neo Jupiter 1006 / Neo Marker 0301 / Neo Deluxe UVD-2506(W) / Neo Deluxe UVD-3206 / Neo Plus UVP-1606(W) / Neo Plus UVP-2506(W), HP Scitex FB6100, Inca EAGLE H / Columbia, NUR Tempo Q, VUTEk PV200 / 600 / PV180 / 600, PrismaJet P22, Teckwin TeckUV S2400 / TeckUV S3000, Inwear L3508G, Buskro BK700
Remarks: original
Specifications:
Technology
Piezo Electric
Max. Resolution
Up to 900dpi
Cal. Droplet Size
28 pico litre
Adj. Range for Droplet Size
25 - 30 pico litre
Tot. Amount of Nozzles
256 (128 per slice)
Nozzle Spacing
254 microns (0.010 in.)
Nozzle Diameter
36 microns
Firing Frequency
20 kHz
Operating Temperature
up to 90°C
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of printer parts and many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage. If there is any visible damage on the package, please contact us via email Chinapartsign@gmail.com
3. Please seriously pay attention to the information of printhead model while purchasing. Once received your item, please inspect if the printhead matches up with the model you required. If you have any problems, it is very important to contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
