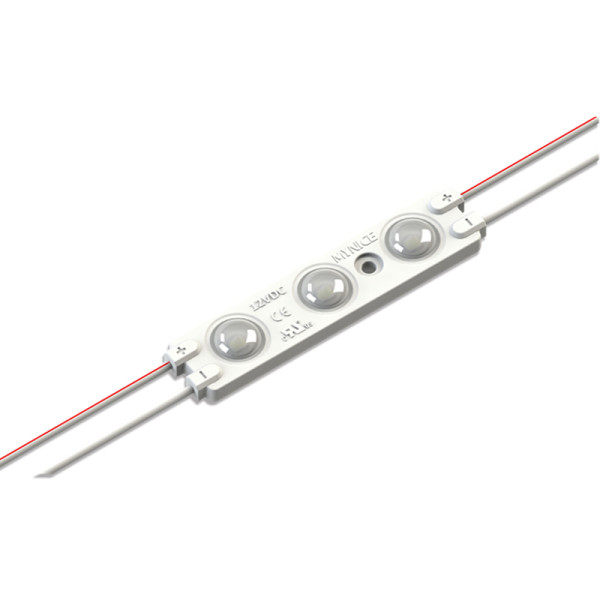

| Product Name | 2835 IP65 DC12V LED Channel Letter Module M23GX22A |
| Item NO. | LED-MZ-M23GX22A |
| Weight | 0.05 kg = 0.1102 lb = 1.7637 oz |
| Category | LED > LED Module > Led Channel Letter Module |
| Creation Time | 2020-09-21 |
DC12V Waterproof LED Channel Letter Module M23GX22A
Technical data
◆ Input Voltage: DC 12V
◆ Power: 1.08W / pcs
◆ Lumen: 105 lm / pcs
◆ Lifetime: > 50000 hours
Product advantages
◆ Large 160° Beam Angle, High Uniformity LENS;
◆ IP Level: IP65；
◆ Used in thicker light box and channel letters;

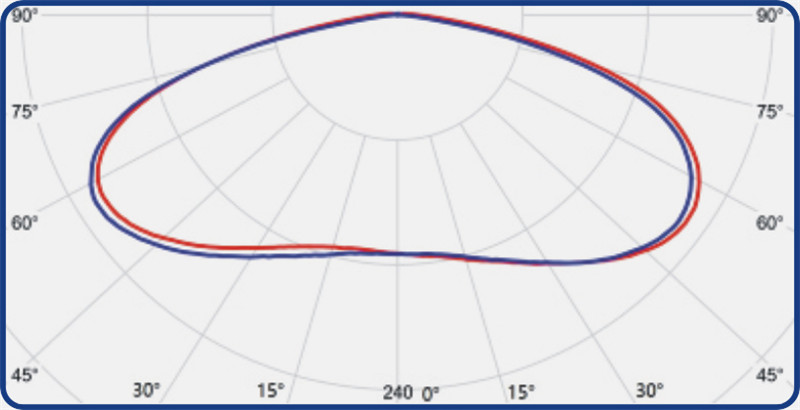

Optical data distribution

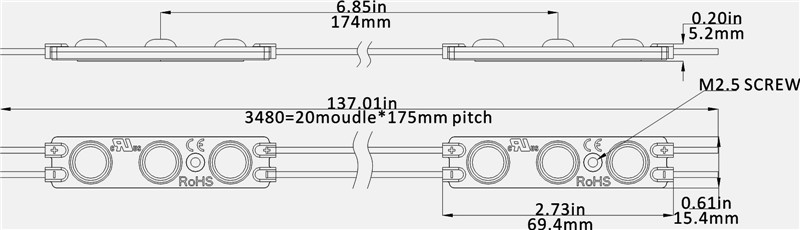

Dimensional drawing

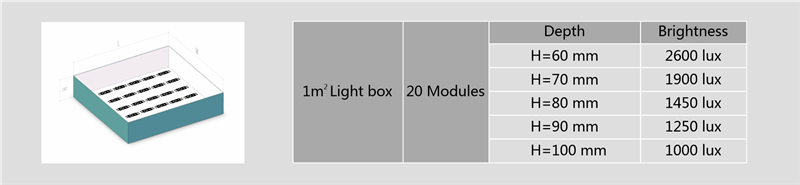

Application notes
