| Product Name | 200*1200mm Automatic thermal high productivity upper feeding table oil heating type heat transfer machine |
| Item NO. | GS-R120 |
| Weight | 880 kg = 1940.0679 lb = 31041.0865 oz |
| Volume | 2.5 CBM |
| Category | Sublimation > Sublimation Machine > Rotary Heat Transfer Machines |
| Creation Time | 2020-11-05 |

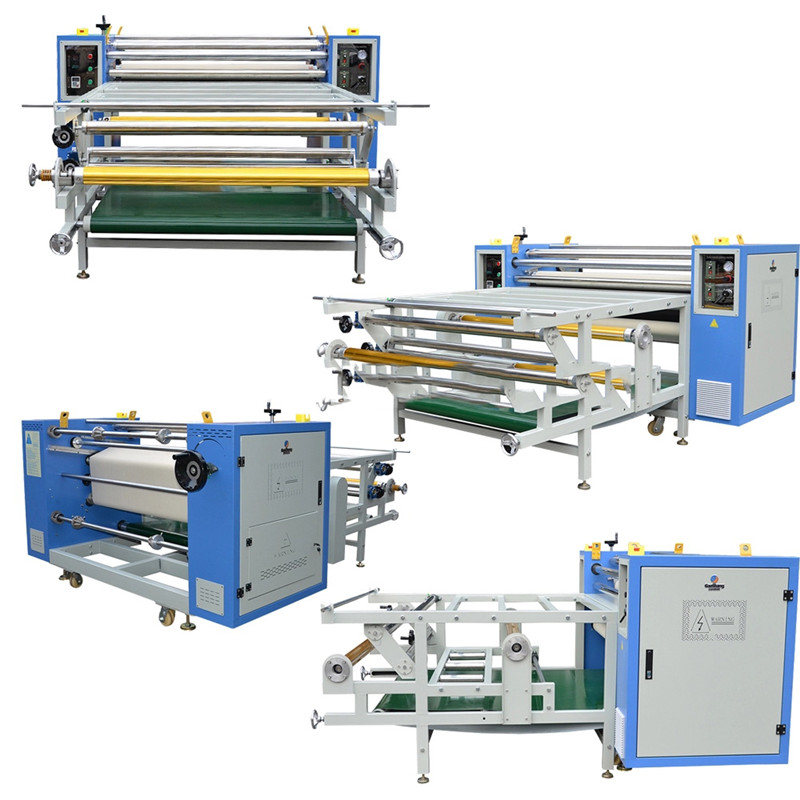

200*1200mm Automatic thermal high productivity upper feeding table oil heating type heat transfer machine
Quick Details
Type: Heat Transfer
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Home Use, Printing Shops, Construction works , Advertising Company
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: Engine, Bearing, Pressure vessel, Gear, Frequency converter
Condition: New
Plate Type: Flatbed Printer
Usage: Cloths Printer, Label Printer
Automatic Grade: Semi-automatic
Color & Page: Multicolor
Voltage: 220V/380V
Dimensions(L*W*H): 200 x 83 x 145cm
Weight: 850kg
Certification: CE
After-sales Service Provided:
Color: Red,grey color
Power: 6KW
Application: T-shirt, roll fabrics/piece fabrics,bed sheet,carpets
Temperature Range: 0-399℃
Time range: 0-999 seconds
Function: high production,easy operation
Worktable size: 120cm/150cm/170cm/190cm
Oil drum diameter: 30cm,42cm,60cm,80cm
Print Speed: 60-90m/hour
Technique data:
|
Name |
Model No. |
Roller dia.(mm) |
Wdith entrance(mm) |
Voltage(V) |
Power |
Temp.(℃) |
Speed/hour(cm/h) |
Size(cm) |
Weight(kg) |
|
Roller heat transfer machine |
GS-R120 |
420 |
1200 |
110/220/ 380 |
18kw |
1-400 |
120-180cm/h |
380x180x140 |
900 |
|
1700 |
21kw |
120-180cm/h |
380x240x140 |
1300 |
|||||
|
2000 |
24kw |
120-180cm/h |
380x270x140 |
1600 |
|||||
|
2200 |
27kw |
120-180cm/h |
380x290x140 |
1700 |
|||||
|
2500 |
30kw |
120-180cm/h |
380x320x140 |
1900 |
|||||
|
600 |
1200 |
30kw |
200-300cm/h |
380x190x150 |
1500 |
||||
|
1700 |
36kw |
200-300cm/h |
380x240x150 |
1900 |
|||||
|
2000 |
39kw |
200-300cm/h |
380x270x150 |
2200 |
|||||
|
2200 |
42kw |
200-300cm/h |
380x290x150 |
2500 |
|||||
|
2500 |
45kw |
200-300cm/h |
380x320x150 |
2800 |

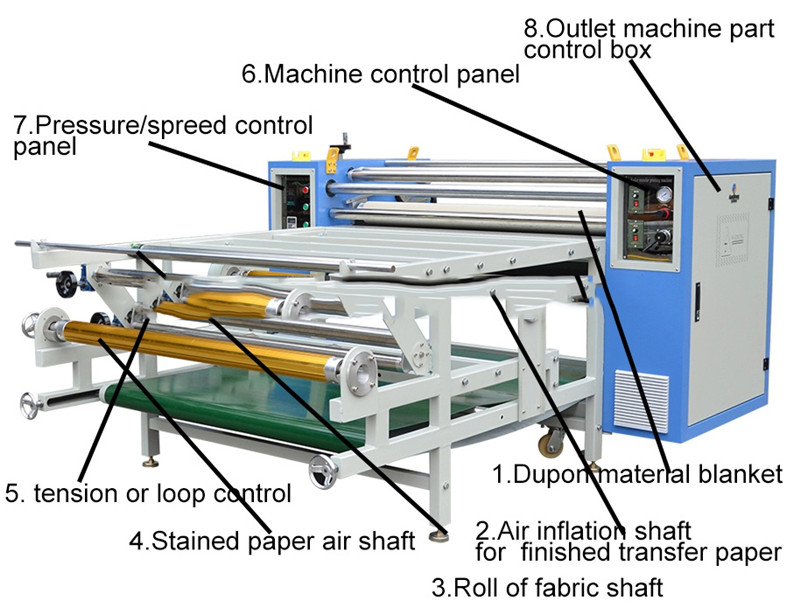

This machine is newly developed, improved from the original model of “down deliver out” to the “Upper deliver in”.
Therefore, it is more convenient to transfer printing on clothing and cuttings with more accurate location. Using the pneumatic pressing or hydraulic press for wool blanket marks the color of the products darker, and brighter, which greatly speed up the transfer printing.
Features:
1. This SUS heating hose heats oil directly at the higher heating speed, reaching 200℃ within 45 minutes
2. It is equipped with external oil box which makes it convenient to add heat conduction oil, it has high security performance with the unique advantage of anti-explosion through automatic turn off.
3. Blanket ad belt are separated. Adopt simultaneous shaft adjustment and pressure balancing shaft to make sure the pressure on the blanket is consistent with that on the heating roller, Thus completely solve the problem of cooling the blanket while turning off the machine or while power off, and give more protection to the blanket and extend its using life.
4. Use frequency conversion governor which can adjust the printing speed freely. And the transfer printing speed is more stable.
5. Automatic collecting and releasing cloth system is optionally equipped.
6. The electric components of the product are imported, and it separated structure of the electric box with the body machine makes the using life of the electrical equipment longer, the digital control brings higher accuracy.
7. The hardware is with high-tech configuration. The main wall panel and rollers are all reinforced and manufacture professionally.
8. The releasing-laying system is manufactured with the body machine as a while part, thus to deliver the paper or cloth exactly parallel without deviation. It only converts a small area but it is labor-saving with high overall efficiency.
