| Product Name | 420*1900mm Roll To Roll Heat Transfer Calendar Machine Press |
| Item NO. | JC-LC-420*1900 |
| Weight | 2000 kg = 4409.2452 lb = 70547.9239 oz |
| Volume | 6.5 CBM |
| Category | Sublimation > Sublimation Machine > Rotary Heat Transfer Machines |
| Creation Time | 2020-09-26 |

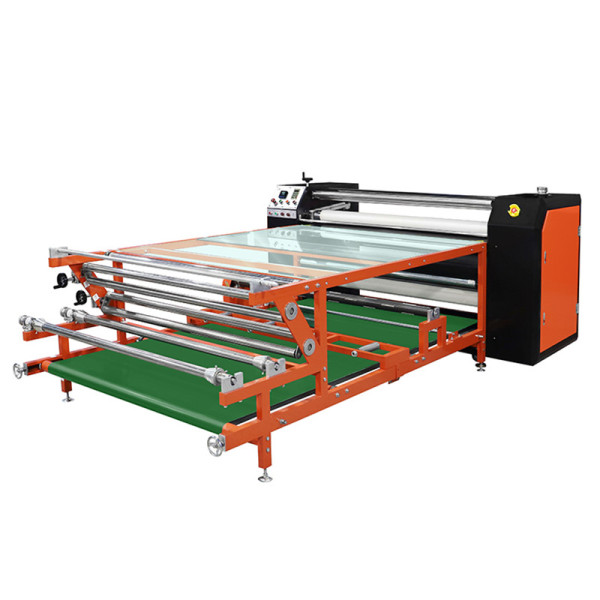

420*1900 Drum Roll To Roll Heat Transfer Calendar Machine Press
Type: Heat Press Machine
Applicable Industries: Garment Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company
After Warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service
Condition: New
Plate Type: Flatbed Printer
Place Of Origin: Guangdong, China
Usage: Cloths Printer
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 220/380 Three-Phase
Dimensions(L*W*H): 263x139x160 mm
Weight: 1800Kg
Certification: CE
Warranty: 1 Year
After-Sales Service Provided: Online Support, Field Installation, Commissioning And Training, Video Technical Support
Key Selling Points: High-Accuracy
Video Outgoing-Inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Product Name: Roller Heat Press Machine
Application: Flat Product Printable
Keywords: Heat Press Nachine
Function: Multiple-Surface Sublimation
Feature: Personalized Custom
MOQ: 1 Set
Temperature Range: 0-399 Degree
Time Range: 0-999s
Service: OEM ODM Support
Highlight: Automatically shut down
System: Fully automatic
Safety: Explosion-proof system
Manufacturers: Yes
Feature: Blanket Auto Correct
Color: Grey
Printing/Roll Width
1700MM/67Inch
Roller diameter
420MM/16.5Inch
Voltage
220/380/420 Three-phase
Other Voltage
Custom voltage by your special order
Rated output
26KW
Speed
0-6M/Min
Weight
1800KG
Packing Size
263*139*160CM
Feeding Method
Top feeding
Other Size
Available
Air Compressor Required
Required
Blanket Material
Nomex:High Temperature Resistance
Drum Surface
Chrome:High hardness and abrasion performance
Drum
Oil 100%
Temperature Range
0-399℃
Scope Of Delivery
Roller heat transfer machine,Power cable without plug,some electronic spare parts for free
Note
Custom size by your special order
Customized machine to work with different power supplier
Warranty
One Year
MOQ
One Set
2. Q: How to choose the right heat press?
As with any equipment, there are many factors to take into consideration when choosing a heat press machine.
The most important thing to look for in a heat press is its ability to provide consistently even temperatures across the platen. This will prevent cold spots from developing and ensure consistent application of heat transfer materials. Proper application temperature is also critical in producing quality garments, making accurate temperature controls an essential feature.
3. Q: What items can be heat pressed?
The following are some of the far more common items often heat pressed. The list by no means ends here.
T-Shirts, Caps, Ceramic Plates, Ceramic Tiles, Mugs, Mouse Pads, Paper Memo Cubes, Tote Bags, Jigsaw Puzzles, Lettering, Numbers, Rhinestones/Crystals, Wood / Metals Other Misc. Fabrics & Materials.
4.Q: What is a transfer made up of ?
A transfer is made up of a carrier paper and inks. When heated to a certain temperature and pressed with a significant amount of pressure for a certain amount of time, the transfer inks are passed over to the transferable material. Some inks are adhered and embedded to the surface of the material, while others (namely, sublimation) permeate the coating of the material.
5.Q: What are the different uses for a heat press?
The variety of uses for a heat press include the application of various types of heat applied materials (listed below), curing of Direct to Garment (DTG) printing, smoothing of embroidery after sewing, and dye sublimation.
6.Q: What will be need if doing heat transfer?
You will need a heat transfer machine(kinds of heat press for choices, if transfer t-shirt, you will need a flat heat press, if transfer cap, you would need a cap press or our combo press etc.) printer, CISS, ink, transfer paper.
7. Q: What kind of paper do I need?
For sublimation there are different papers developed for different substrates.Mouse pad,bags,fabrics are best transferred using our special transfer paper.When transferring items such as ceramics,glass,you can use normal inkjet paper.
8.Q: What can I decorate using a heat press?
The variety of uses for a heat press include the application of various types of heat applied materials (listed below), curing of Direct to Garment (DTG) printing, smoothing of embroidery after sewing, and dye sublimation.
The list of items (or substrates) that can be imprinted using a heat press or mug heat press is constantly growing. Typically, apparel such as T-shirts, golf shirts, and sweatshirts and pants come to mind when one thinks of heat pressing. But with the ever-evolving heat press industry items like caps, nylon jackets and bags, canvas bags, spandex and neoprene garments, and even coffee mugs can be customized using heat applied material. Below is an extensive list of heat press ideas.
