| Product Name | Desktop Micro-Adjust Four Color One Station Overprinting Screen Printing Machine E411Z 006231 |
| Item NO. | SPM-E411Z-0062312 |
| Weight | 35 kg = 77.1618 lb = 1234.5887 oz |
| Volume | 0.17 CBM |
| Category | Screen Printing > Screen Printing Machine > Multi Color |
| Creation Time | 2020-10-08 |

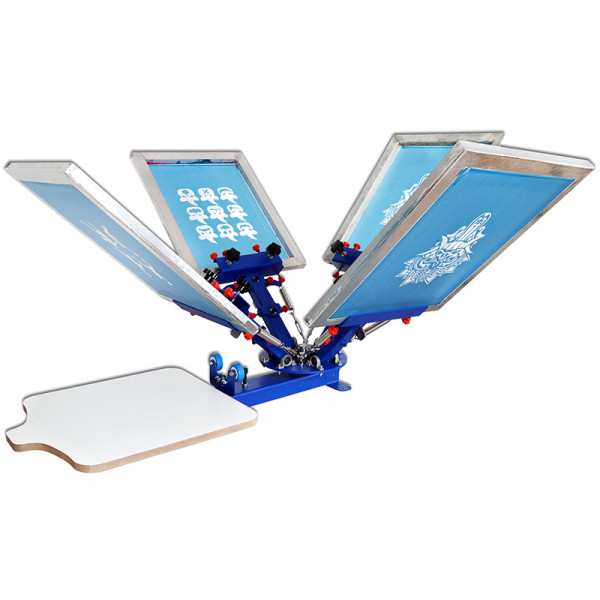

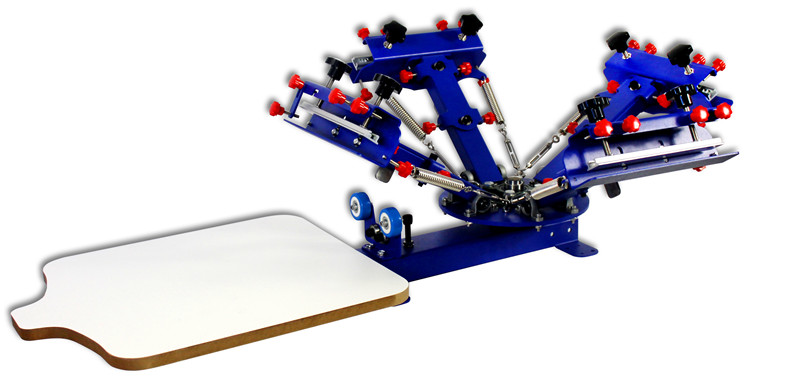

006231---E411Z Desktop Micro-Adjust Four Color One Station Overprinting Screen Printing Machine
It is mainly used for the four color T-shirt overprinting,it is configured with one t-shirt pallet station;The machine should be fixed on the table.
This machine has micro-adjust knobs to move screen plate to position the color for overprinting.
The functions and characters :

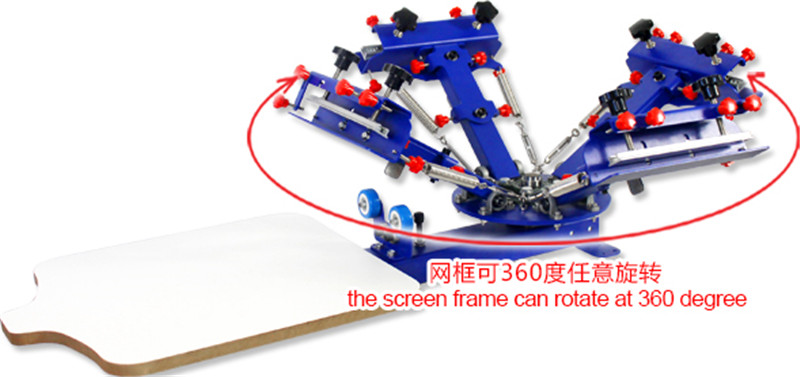

1. The chuck of the screen frame can rotate at 360 degree.

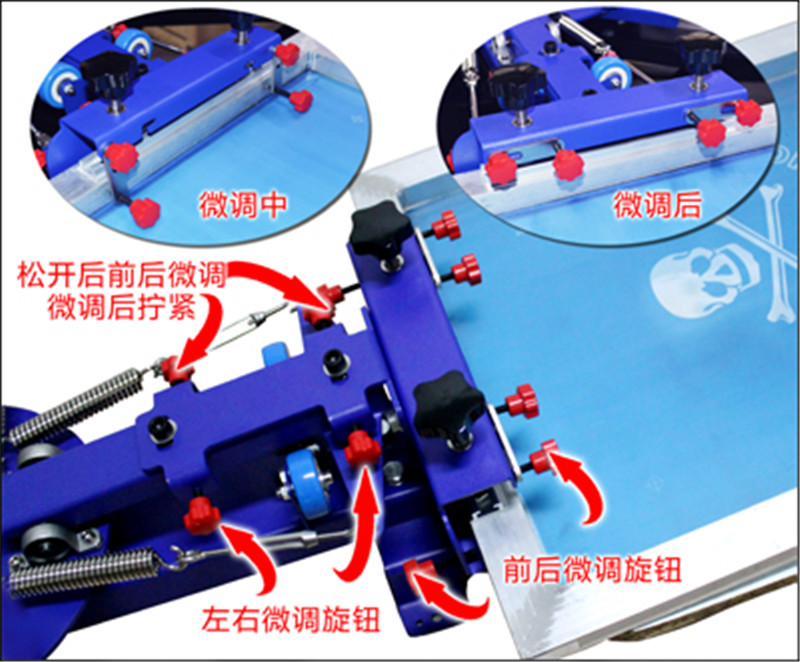

2. Each screen frame fixing device is configured with 8 micro-adjust knobs,they can micro adjust the screen frame from left to right , from front to back, and it can make the overprinting be simpler and more accurate.

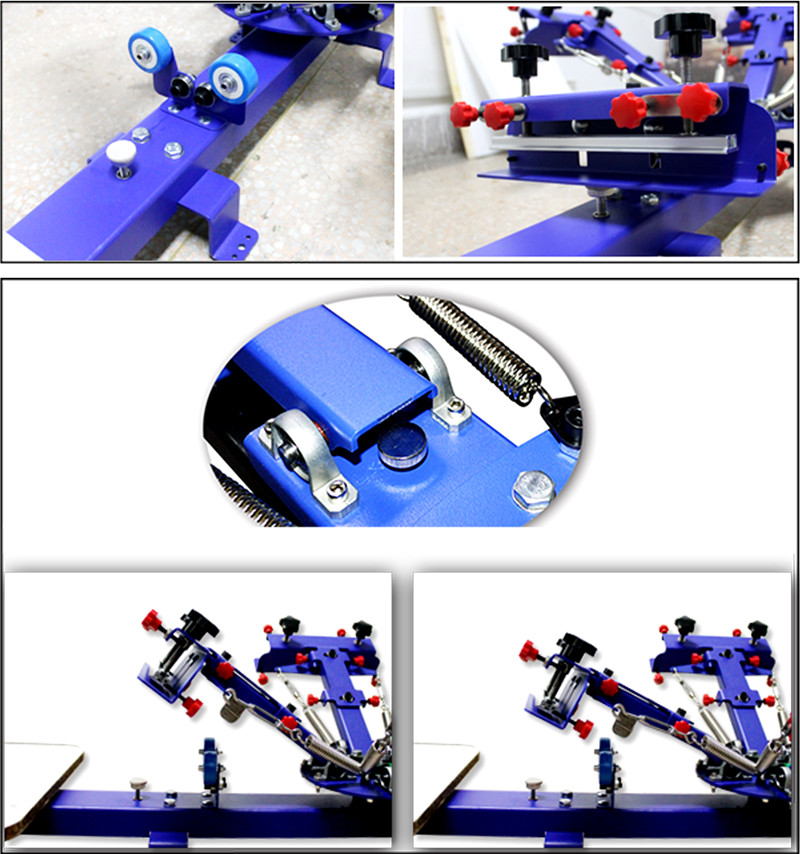

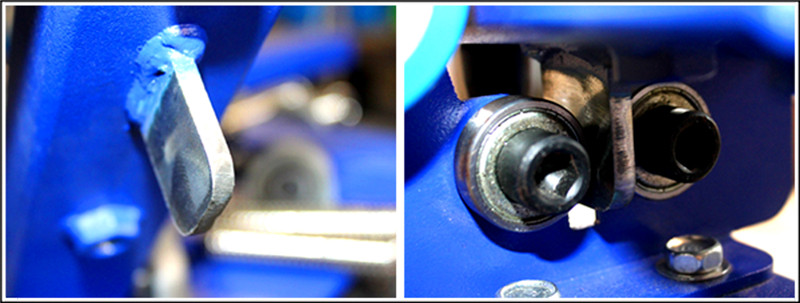

3. Each screen frame’s fixing device is equipped wth precise positioning wheel,when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision .

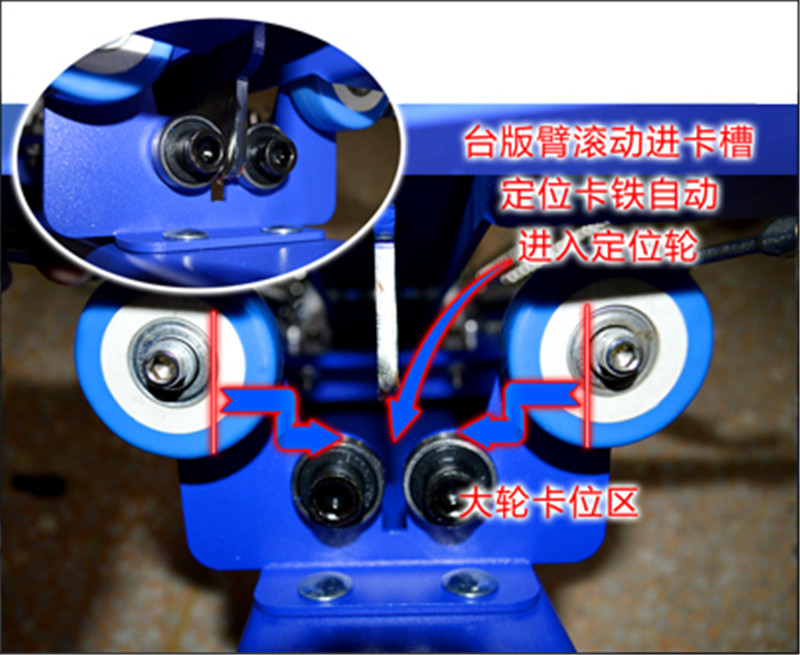

4. Each screen frame’s fixing device is equipped wth big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels ,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel.
5. Each screen frame’s fixing device is equipped wth adjustable height chuck positioning knobs and adjustable height knobs when lift up the acreen frame
6. According to the weight of the screen frame, spring tension can be adjusted by the basket screws to achieve balance;

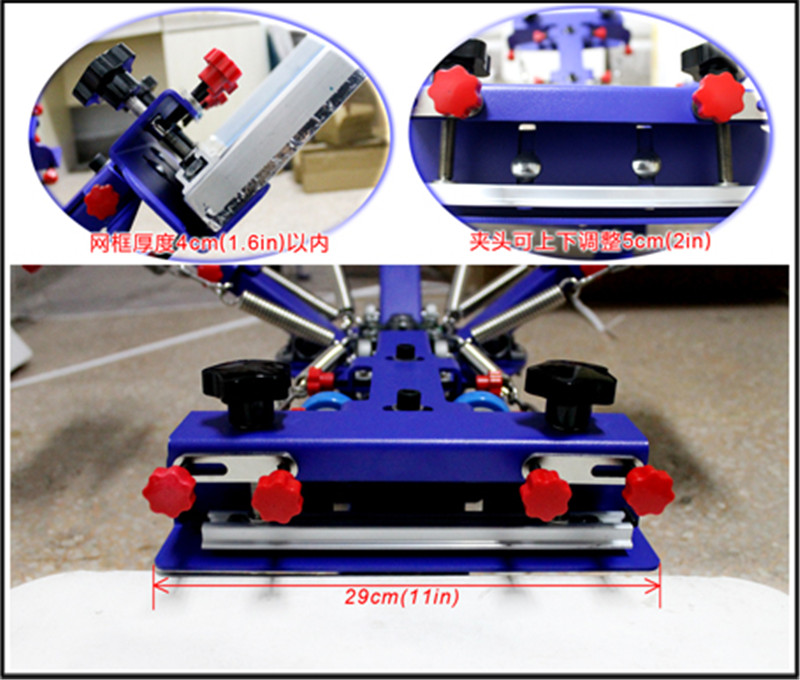

7. Screen frame chuck’s width is (11in) 29 cm ; It is suitable for screen frame with outside size within (24 in) 60 cm and screen frame with thickness size is within 4 cm (1.6 in) ;
8. Screen frame chuck can be adjusted up to 5 cm (2 in)according to the height of substrates;

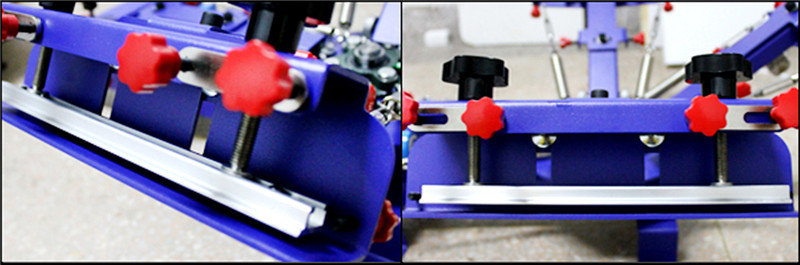

9. Screen frame chuck knob fix the screen frame together with the special aluminum alloy plate, and it can be fit closely and be more stable;

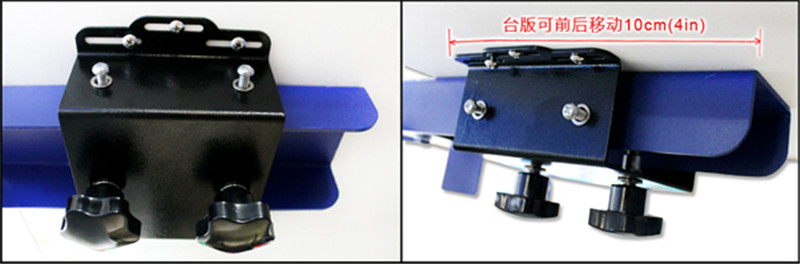

10. The pallet is connected with the pallet arm by braket, it can move around 10cm (4 in) from front to back .

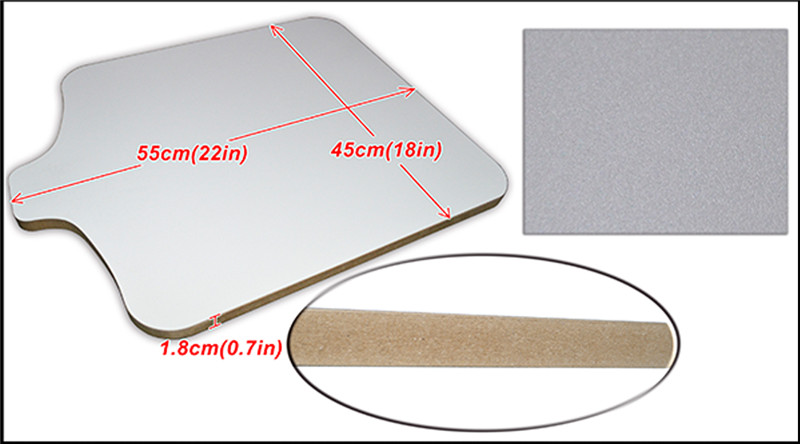

11. T-shirt type pallet of the machine is 55 cm (22 in) long, 45 cm(18in) wide, the thickness is 1.8 cm (0.7 in); Using furniture surface melamine high density board, the surface with small pits, and it is more suitable for printing T-shirt when scraping the pallet glue.

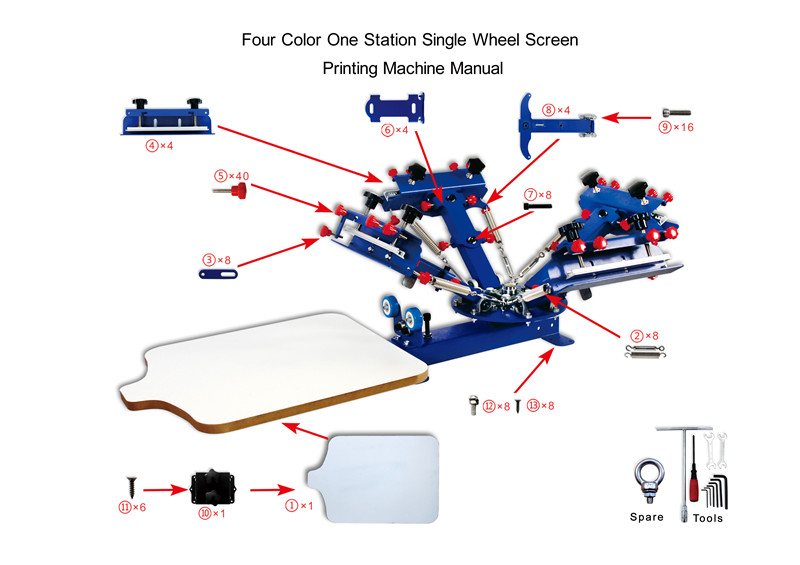

12. This machine is combination structure, small size, and it is more suitable for transportation; According to the installation diagram and configuration installation tools can install the machine.

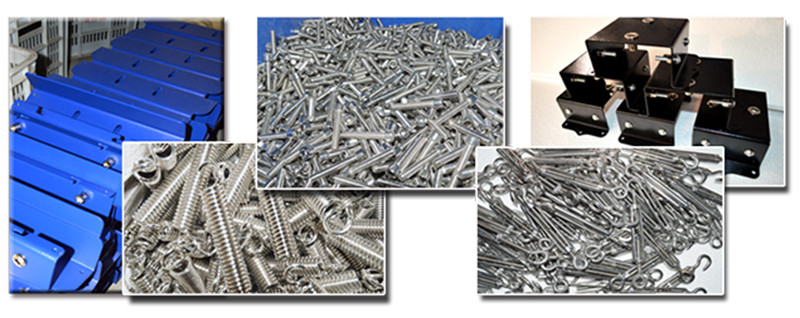

13. The machine adopts advanced electrostatic spraying process, various parts using stainless steel, aluminum alloy, nickel and zinc plating technology. They are corrosion resistance, no fading, easy to clean, maintain color and finish for a long time, and it can use for a long time with no rust.
14. All machines are configured with a full set of tools to install the machine; There is no need to prepare for other tools to complete the installation; Equipped with installation diagram and the packing list, parts installation location is very clear; All machines are configured with installation CD and operation video, it is more convenient for the user to install and use the machine .There are still spare parts in the box for users to change.
Product Code
006231
Product Name
E411Z desktop micro-adjust four color one station overprinting screen printing machine
Product Color
blue
Printing Area
22*18in
Machine using material
steel plate
Machine surface treatment
Electrostatic spraying
Attachment material
Stainless steel or zinc plating, nickel plating
Packing quantity
1
Net weight
70.5lb
Gross weight
77lb
Packing size
35*22*13in
Packing volume
0.16m³
Packing material
Export Carton
