| Product Name | Four Color Two Station Desktop Screen Printing Machine A421Z |
| Item NO. | SPE-A421Z-006431 |
| Weight | 37 kg = 81.5710 lb = 1305.1366 oz |
| Volume | 0.25 CBM |
| Category | Screen Printing > Screen Printing Machine > Multi Color |
| Creation Time | 2020-10-07 |

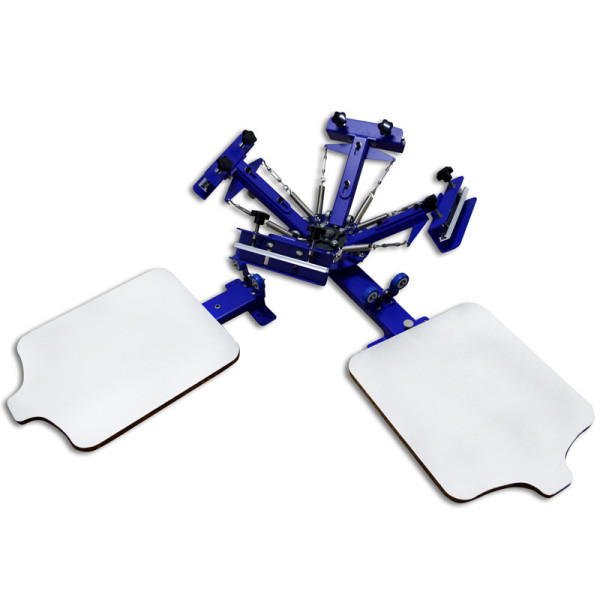

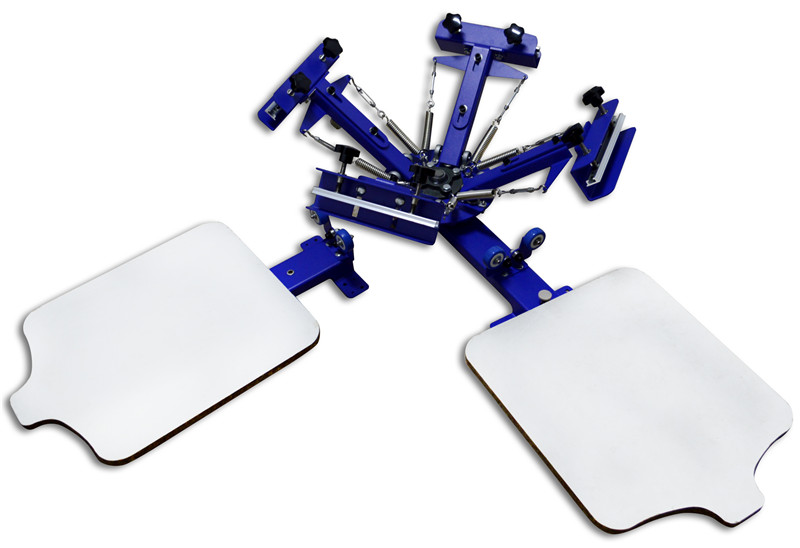

006431 A421Z Four Color Two Station Desktop Screen Printing Machine
It is mainly used for the four color T-shirt overprinting, the machine is equipped with two Tshirt stations ;The second station can be fixed at the opposte of the first position within 90 degree.The machine should be fixed on the table. This machine is manual mobile screen frame to match color. When all the screen frames’position is correct, the user can start the overprinting.
The functions and characters:

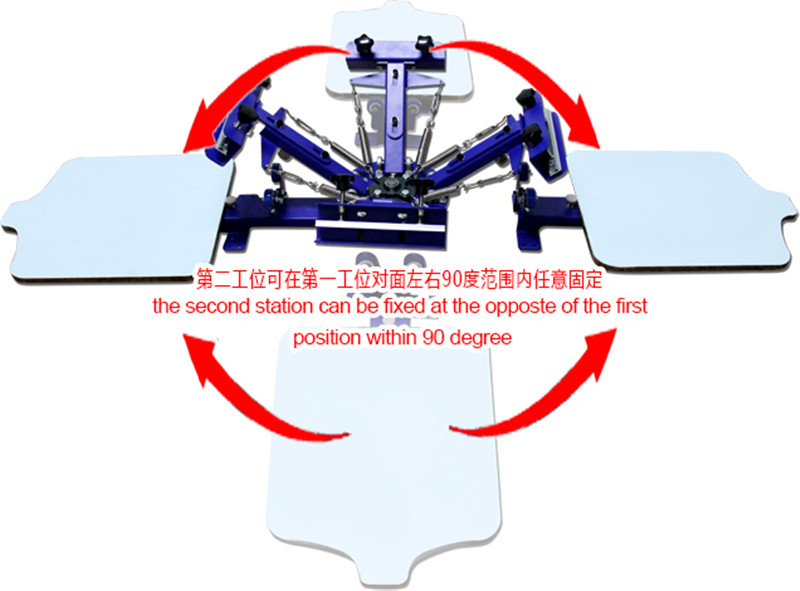

1. After the installation of the main machine,the second station can be fixed at the opposte of the first position within 90 degree;

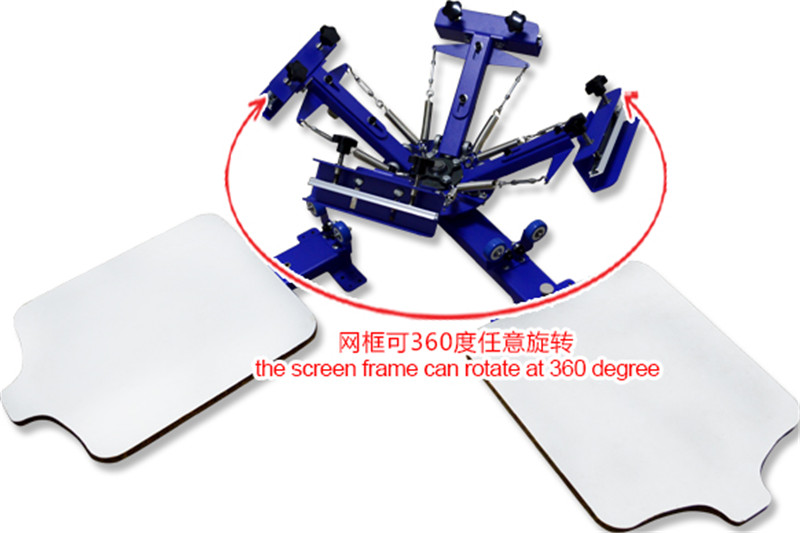

2. The chuck of the screen frame can rotate at 360 degree.
3. Users can finish all the screen frame’s overprinting positioning at any pallet station,
All the screen frames’position is correct to any one pallet , the other one pallet will be correct , then the user can start overprinting.

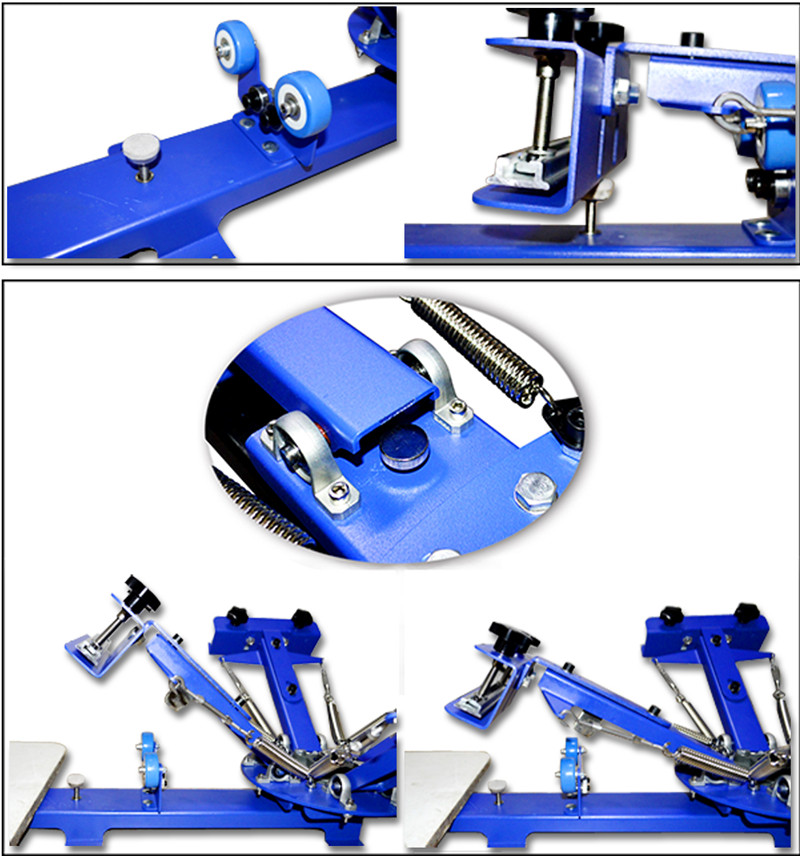

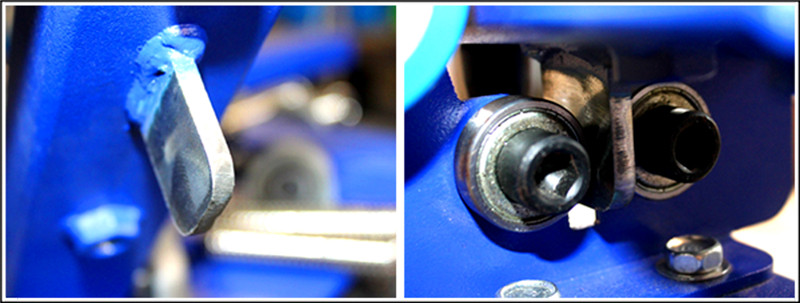

4. Each screen frame’s fixing device is equipped wth precise positioning wheel,when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision.
5. Each screen frame’s fixing device is equipped wth big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels ,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel.
6. Each screen frame’s fixing device is equipped wth adjustable height chuck positioning knobs and adjustable height knobs when lift up the acreen frame ;

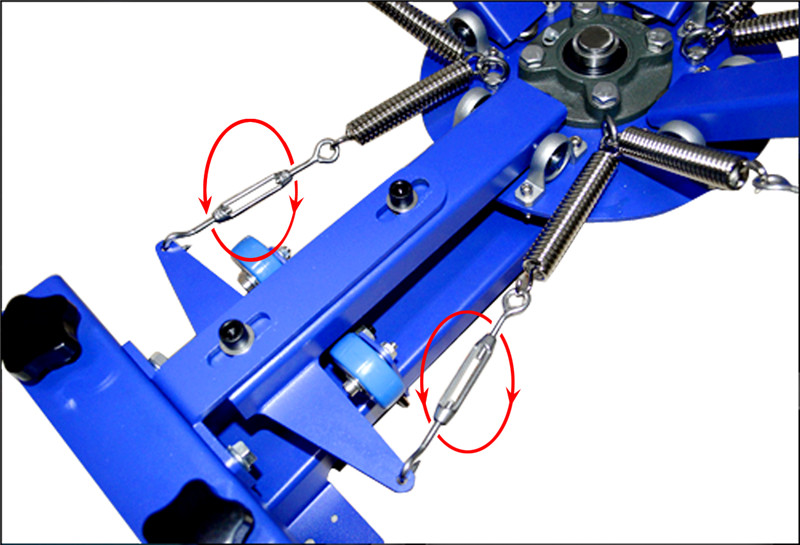

According to the weight of the screen frame, spring tension can be adjusted by the basket screws to achieve balance;

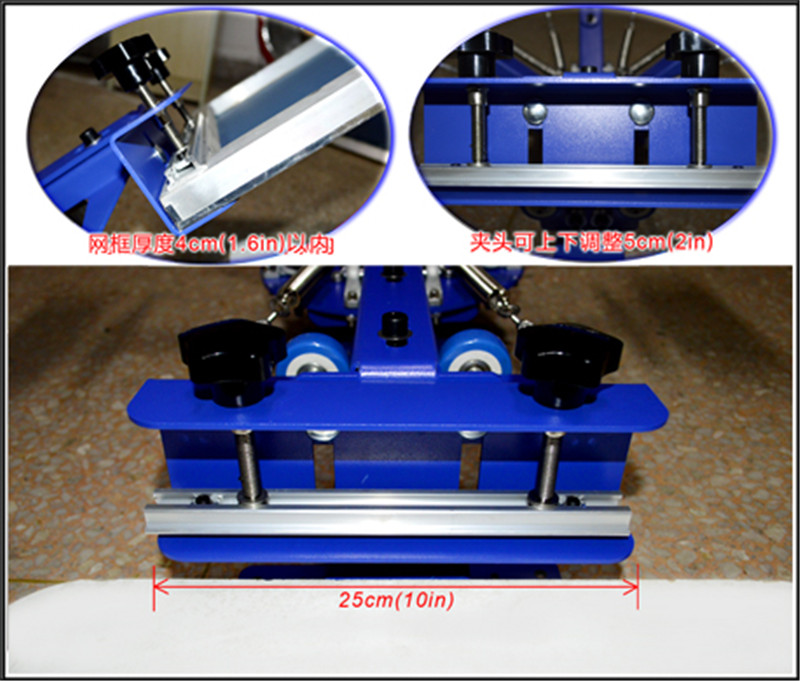

7. Screen frame chuck’s width is (10in) 25 cm ; It is suitable for screen frame with outside size within (24 in) 60 cm and screen frame with thickness size is within 4 cm (1.6 in);
8. Screen frame chuck can be adjusted up to 5 cm (2 in)according to the height of substrates;
9. Screen frame chuck knob fix the screen frame together with the special aluminum alloy plate, and it can be fit closely and be more stable;

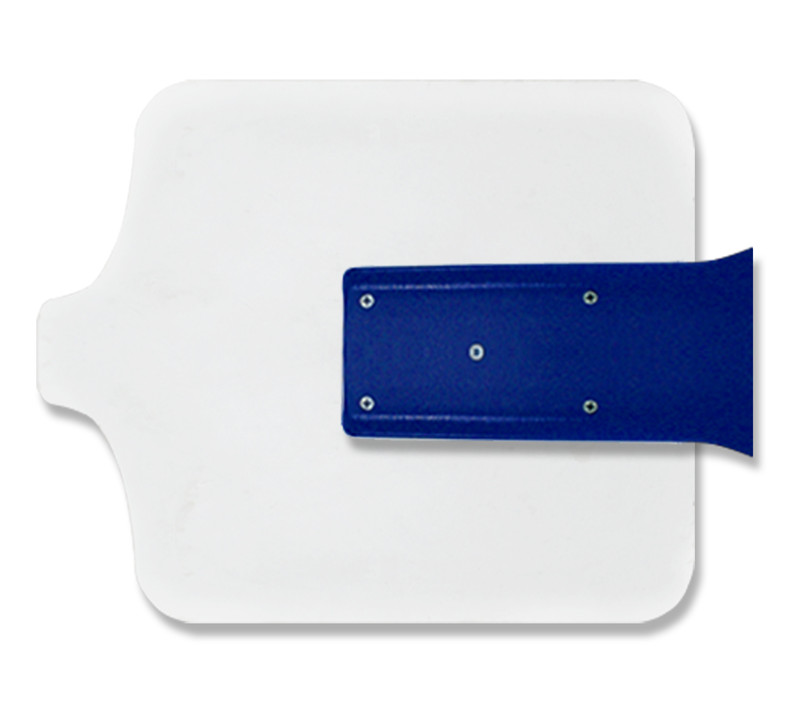

10. The pallet is directly fixed on the pallet arm by screws.
11. T-shirt type pallet of the machine is 55 cm (22 in) long, 45 cm(18in) wide, the thickness is 1.8 cm (0.7 in); Using furniture surface melamine high density board, the surface with small pits, and it is more suitable for printing T-shirt when scraping the pallet glue.

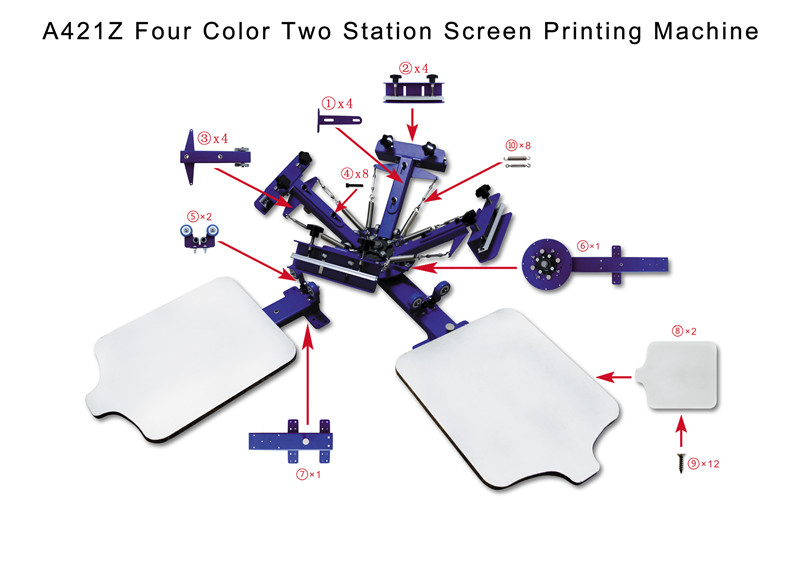

12. This machine is combination structure, small size, and it is more suitable for transportation; According to the installation diagram and configuration installation tools can install the machine.
13. This machine is combination structure, small size, and it is more suitable for transportation; According to the installation diagram and configuration installation tools can install the machine.
| Product Code | 6431 |
| Product Name | A421Z desktop four color two station single wheel screen printing machine |
| HS code | 8443192290 |
| Product Color | blue |
| Printing Area | 22*18in |
| Machine using material | steel plate |
| Machine surface treatment | Electrostatic spraying |
| Attachment material | Stainless steel or zinc plating, nickel plating |
| Packing quantity | 1 |
| Net weight | 66lb |
| Gross weight | 80.2lb |
| Packing size | 34*20.5*11in |
| Packing volume | 0.13 m³ |
| Packing material |
Export carton |
