| Product Name | Four Color One Station Desktop Screen Printing Machine SPE-41M |
| Item NO. | SPE-41M-006430 |
| Weight | 25 kg = 55.1156 lb = 881.8490 oz |
| Volume | 0.05 CBM |
| Category | Screen Printing > Screen Printing Machine > Multi Color |
| Creation Time | 2020-08-29 |

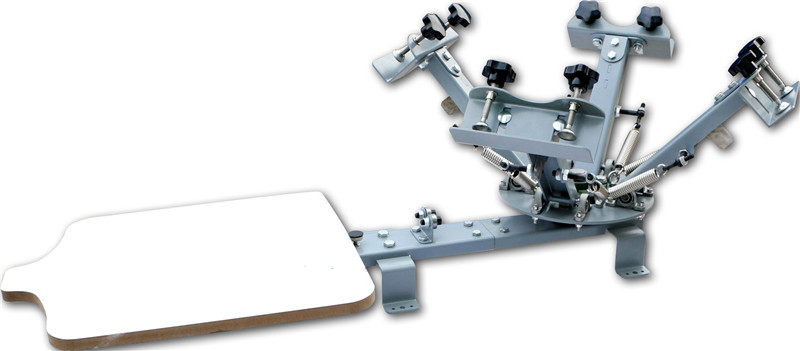

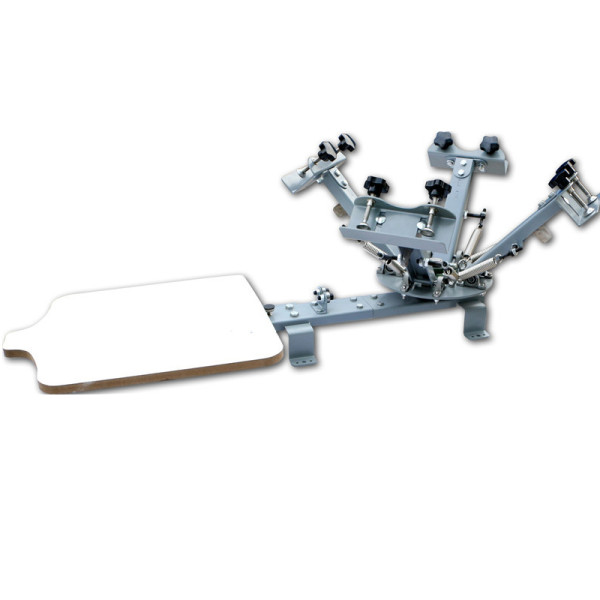

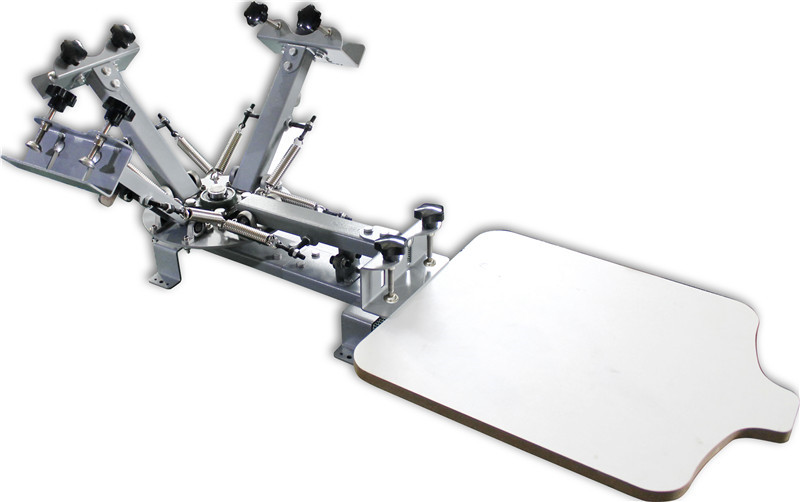

006430---Spe-41M Four Color One Station Desktop Screen Printing Machine
Product Code
6361
HS code
8443192290
Product Color
silver gray
Printing Area
22*18in
Machine using material
steel plate
Machine surface treatment
Electrostatic spraying
Attachment material
Stainless steel or zinc plating, nickel plating
Packing quantity
1
Net weight
48.5lb
Gross weight
53lb
Packing size
23.8*20*7in
Packing volume
0.05m³
Packing material
Export carton
It is mainly used for the four color T-shirt overprinting, the machine should be fixed on the table. This machine is manual mobile screen frame to match color.
The functions and characters :

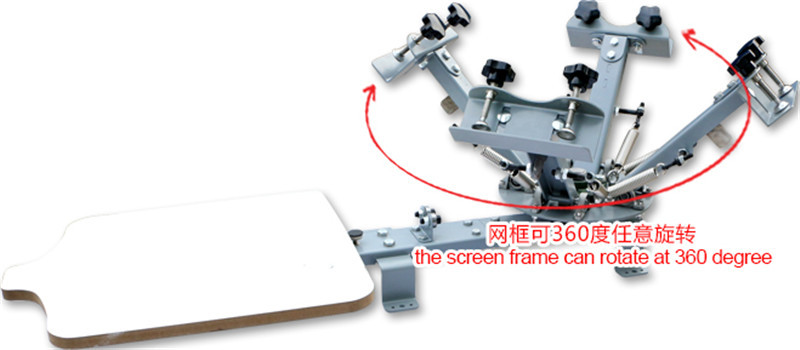

The chuck of the screen frame can rotate at 360 degree.

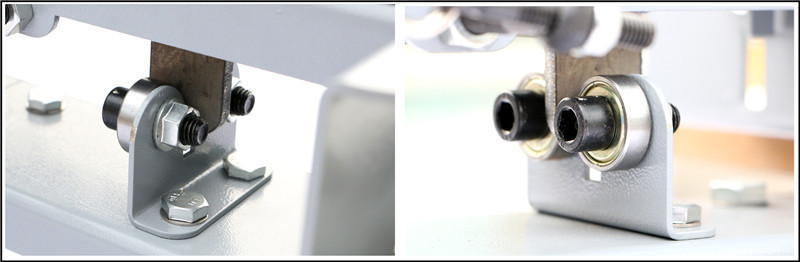

Each screen frame’s fixing device is equipped wth precise positioning wheel,when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision .

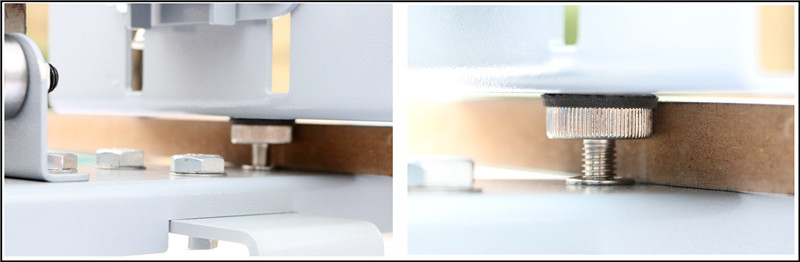

Each screen frame’s fixing device is equipped wth adjustable height chuck positioning knobs and adjustable height knobs when lift up the acreen frame

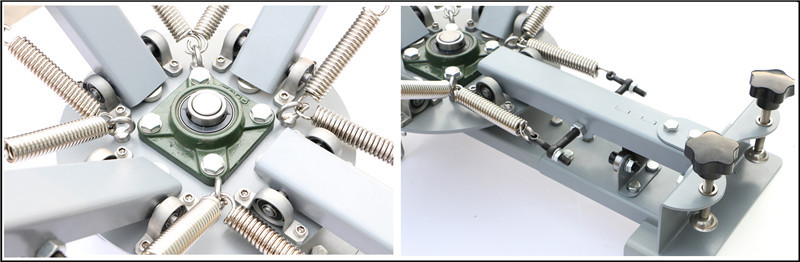

According to the weight of the screen frame, spring tension can be adjusted by the basket screws to achieve balance;
Screen frame chuck’s width is (10in) 25 cm ; It is suitable for screen frame with outside size within (24 in) 60 cm and screen frame with thickness size is within 4 cm (1.6 in) ;

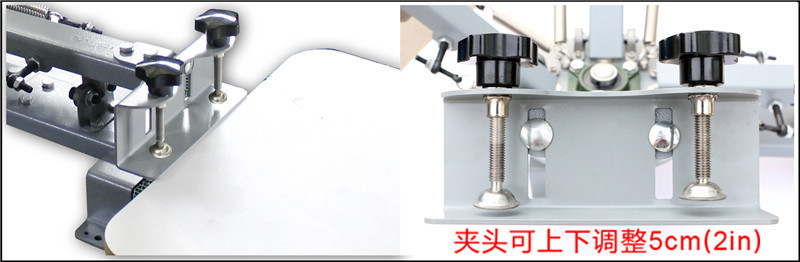

Screen frame chuck can be adjusted up to 5 cm (2 in)according to the height of substrates;

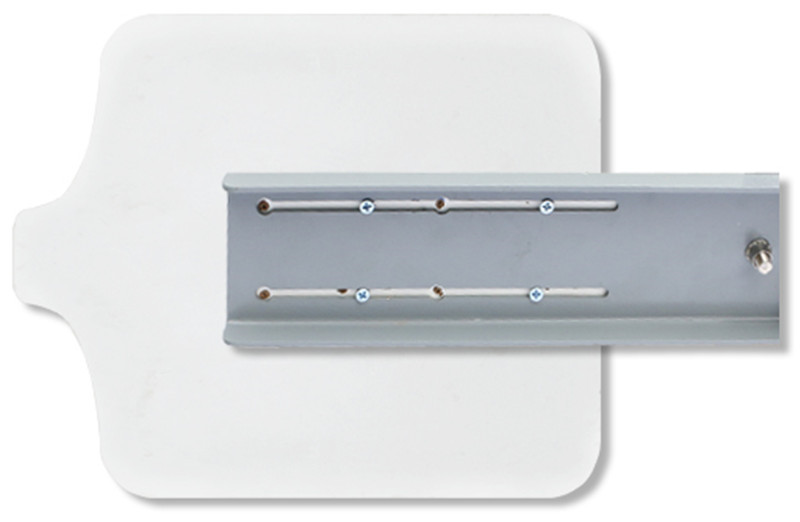

The pallet is directly fixed on the pallet arm by screws.

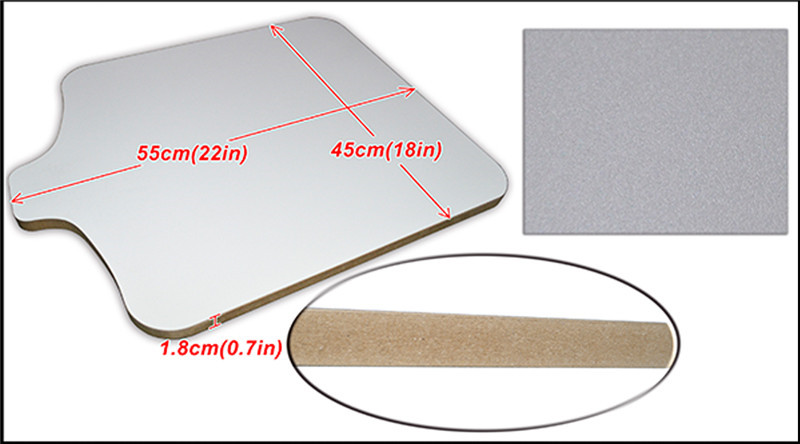

T-shirt type pallet of the machine is 55 cm (22 in) long, 45 cm(18in) wide, the thickness is 1.8 cm (0.7 in); Using furniture surface melamine high density board, the surface with small pits, and it is more suitable for printing T-shirt when scraping the pallet glue.
This machine is combination structure, small size, and it is more suitable for transportation; According to the installation diagram and configuration installation tools can install the machine.The machine adopts advanced electrostatic spraying process, various parts using stainless steel,aluminum alloy, nickel and zinc plating technology. They are corrosion resistance, no fading, easy to clean, maintain color and finish for a long time, and it can use for a long time with no rust.All machines are configured with a full set of tools to install the machine; There is no need to prepare for other tools to complete the installation; Equipped with installation diagram and the packing list, parts installation location is very clear; All machines are configured with installation CD and operation video, it is more convenient for the user to install and use the machine .There are still spare parts in the box for users to change .
