| Product Name | Desktop Micro-Adjust Four Color Two Station Overprinting Screen Printing Machine E421Z |
| Item NO. | SPM-E421Z-006235 |
| Weight | 45 kg = 99.2080 lb = 1587.3283 oz |
| Volume | 0.2 CBM |
| Category | Screen Printing > Screen Printing Machine > Multi Color |
| Creation Time | 2020-10-08 |

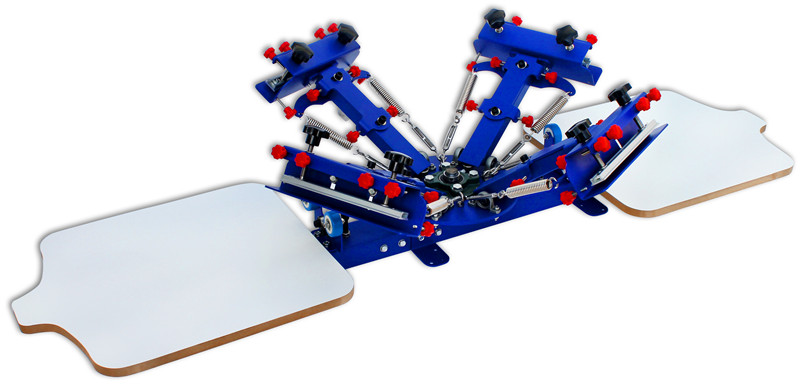

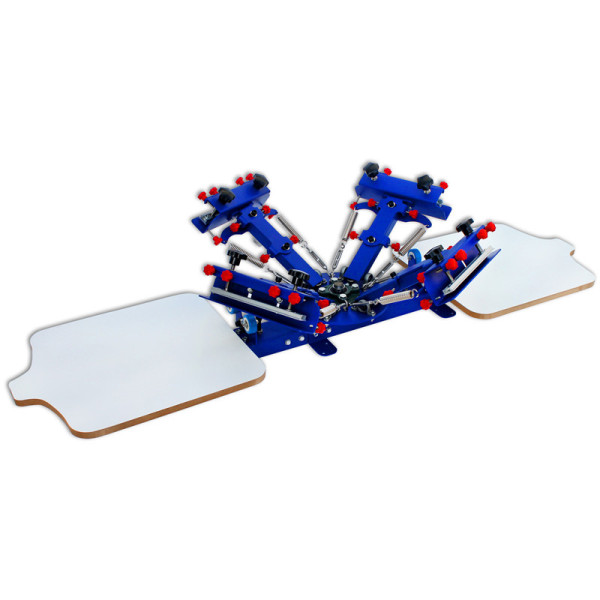

006235---E421Z Desktop Micro-Adjust Four Color Two Station Overprinting Screen Printing Machine
It is mainly used for the four color T-shirt overprinting,it is configured with two t-shirt pallet stations;The machine should be fixed on the table.
This machine has micro-adjust knobs to move screen plate to position the color for overprinting.
The functions and characters :

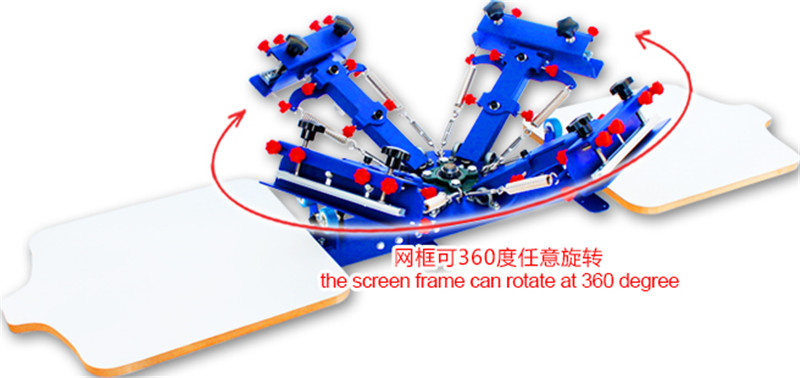

1. The chuck of the screen frame can rotate at 360 degree.
2. Each screen frame fixing device is configured with 8 micro-adjust knobs,they can micro adjust the screen frame from left to right , from front to back, and it can make the overprinting be simpler and more accurate. Users can finish all the screen frame’s overprinting positioning at any pallet station,All the screen frames’position is correct to any one pallet , the other one pallet will be correct , then the user can start overprinting.There is no need to correct the position of every pallet.
3. Each screen frame’s fixing device is equipped wth precise positioning wheel,when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision.
4. Each screen frame’s fixing device is equipped wth big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels ,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel.
5. Each screen frame’s fixing device is equipped wth adjustable height chuck positioning knobs and adjustable height knobs when lift up the acreen frame;
6. According to the weight of the screen frame, spring tension can be adjusted by the basket screws to achieve balance;
7. Screen frame chuck’s width is (11in) 29 cm ; It is suitable for screen frame with outside size
8.The screen frame chuck can be adjusted up to 5cm(2in) according to the height of the substrate.
9. Screen frame chuck knob fix the screen frame together with the special aluminum alloy plate, and it can be fit closely and be more stable;

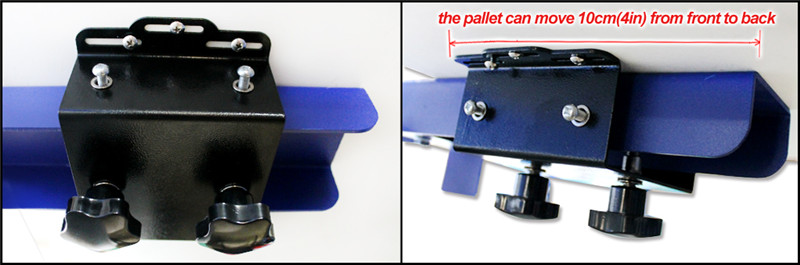

10. The pallet can move 10cm(4in)from front to back by the connections at the bottom of the pallet.
11. T-shirt type pallet of the machine is 55 cm (22 in) long, 45 cm(18in) wide, the thickness is 1.8 cm (0.7 in); Using furniture surface melamine high density board, the surface with small pits, and it is more suitable for printing T-shirt when scraping the pallet glue.

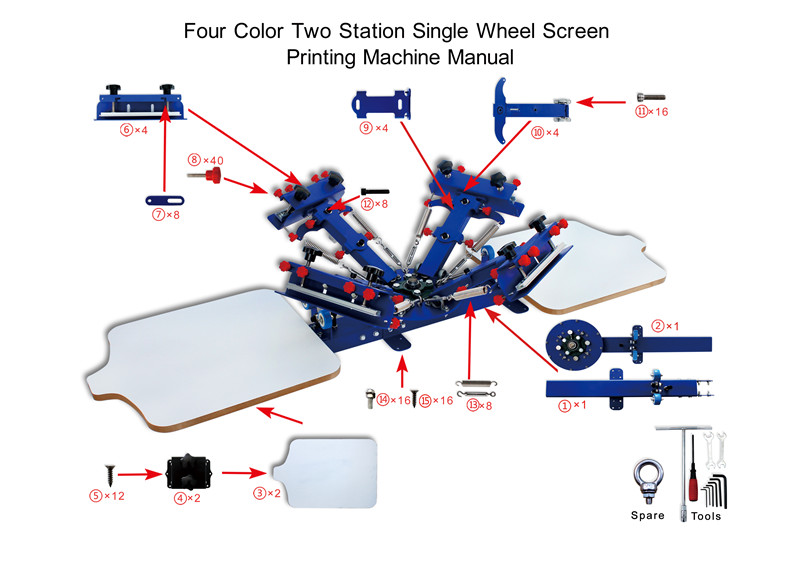

12. This machine is combination structure, small size, and it is more suitable for transportation; According to the installation diagram and configuration installation tools can install the machine.
13. The machine adopts advanced electrostatic spraying process, various parts using stainless steel, aluminum alloy, nickel and zinc plating technology. They are corrosion resistance, no fading, easy to clean, maintain color and finish for a long time, and it can use for a long time with no rust.
14. All machines are configured with a full set of tools to install the machine; There is no need to prepare for other tools to complete the installation; Equipped with installation diagram and the packing list, parts installation location is very clear; All machines are configured with installation CD and operation video, it is more convenient for the user to install and use the machine .There are still spare parts in the box for users to change .
| Product Code | 6235 |
| Product Name | E421Z desktop micro-adjust four color two station overprinting screen printing machine |
| HS code | 8443192290 |
| Product Color | blue |
| Printing Area | 22*18in |
| Machine using material | steel plate |
| Machine surface treatment | Electrostatic spraying |
| Attachment material | Stainless steel or zinc plating, nickel plating |
| Packing quantity | 1 |
| Net weight | 92.6lb |
| Gross weight | 99.2lb |
| Packing size | 35*22*13in |
| Packing volume | 0.16m³ |
| Packing material | Export Carton |
