| Product Name | 20W Portable fiber laser machine Metal laser machine |
| Item NO. | DBJ-KH-20W |
| Weight | 55.44 kg = 122.2243 lb = 1955.5885 oz |
| Category | Leaser Engrave > Fiber Marking Machine |
| Creation Time | 2020-07-26 |

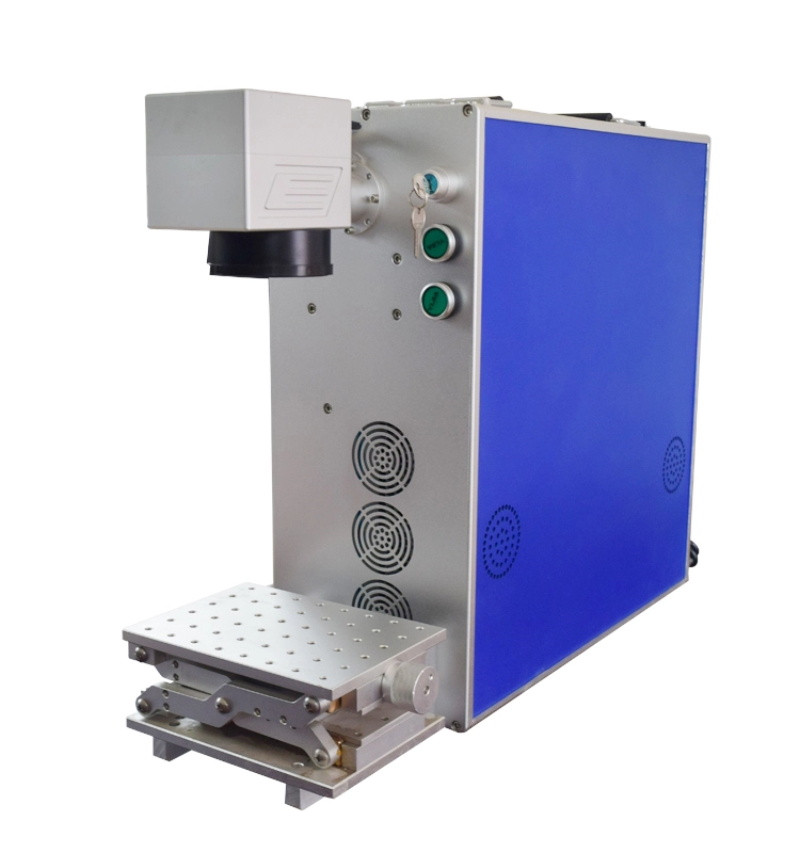

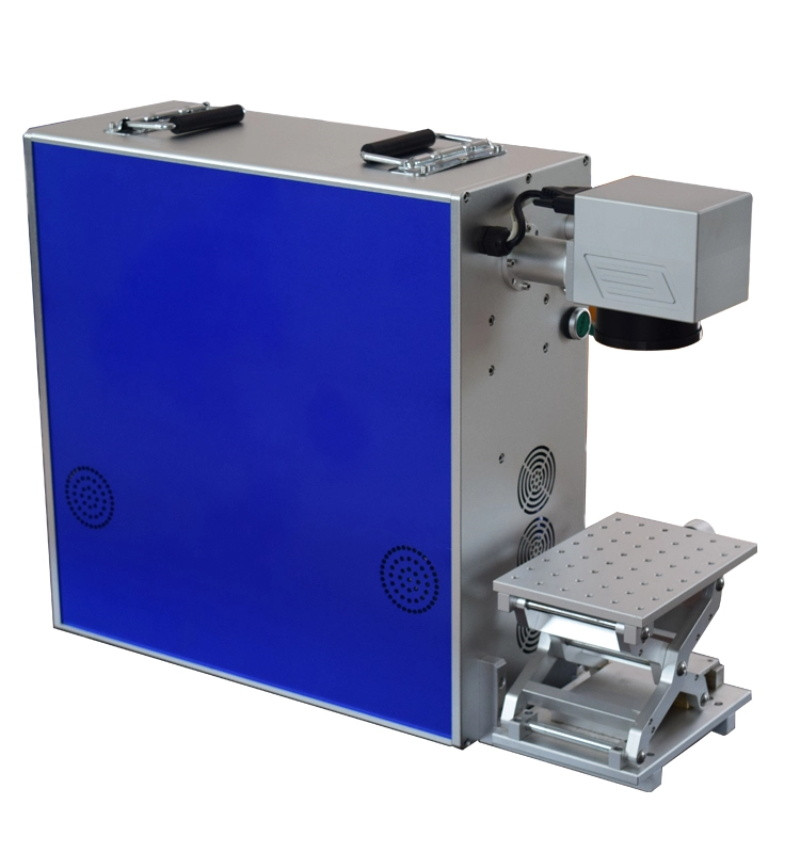

20W Portable fiber laser machine Metal laser machine
Perfect fiber laser marking machine is widely for stainless steel marking, carbon steel marking, iron making, aluminum marking,PVC/PC board, hard plastic marking, rubber marking, ceramic marking etc., in the industries of electronic and communication products, IC products, electric lines, cable computer computer components and electric appliance, precision parts, hardware tools, instrument appliance and so on.
Quick Details
Application: Laser Marking
Laser Type: Fiber Laser
Working Accuracy: ±0.003mm, 0.01mm
Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Condition: New
CNC or Not: Yes
Cooling Mode: Air Cooling
Control Software: EZCAD
Certification: CE, FDA
Marking depth: ≤1.2mm
Minimum Line Width: 0.012mm
Minimum Character: 0.15mm*0.15mm
Marking speed:: 800 standard characters/ second
The output power: 10%-100%
interfaces: USB
After-sales Service Provided: Engineers available to service machinery overseas
Power: 10W/20W/30W/50W
| Product name | Fiber laser marking machine |
| Power | 10w/ 20w/ 30w/ 50w (optional) |
| Working area | 150*150mm, 250*250mm, 300*300mm (optional) |
| The wavelength | 1064nm |
| Marking depth | ≤1.2mm |
| Marking Speed | 800 standard characters/second |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Perecision | ±0.003mm |
| Life-span of fiber laser module | 100 000 hours |
| Beam Quality | M2 <1.5 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| System Operation Environment | Windows XP / W7--32/64bits / W8--32/64bits |
| Cooling mode | Air-cooling-Built-in |
| Temperature of Operation Environment | 15℃~35℃ |
| Power input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Power Requirement | <400W |
| Communication Interface | USB |
| Optional device |
Rotary device, Moving table, other customized Automation |
