| Product Name | 20W Separate type fiber marking machine Metal making machine |
| Item NO. | DBJ-KH-FTS-20W |
| Weight | 56 kg = 123.4589 lb = 1975.3419 oz |
| Category | Leaser Engrave > Fiber Marking Machine |
| Creation Time | 2020-07-26 |

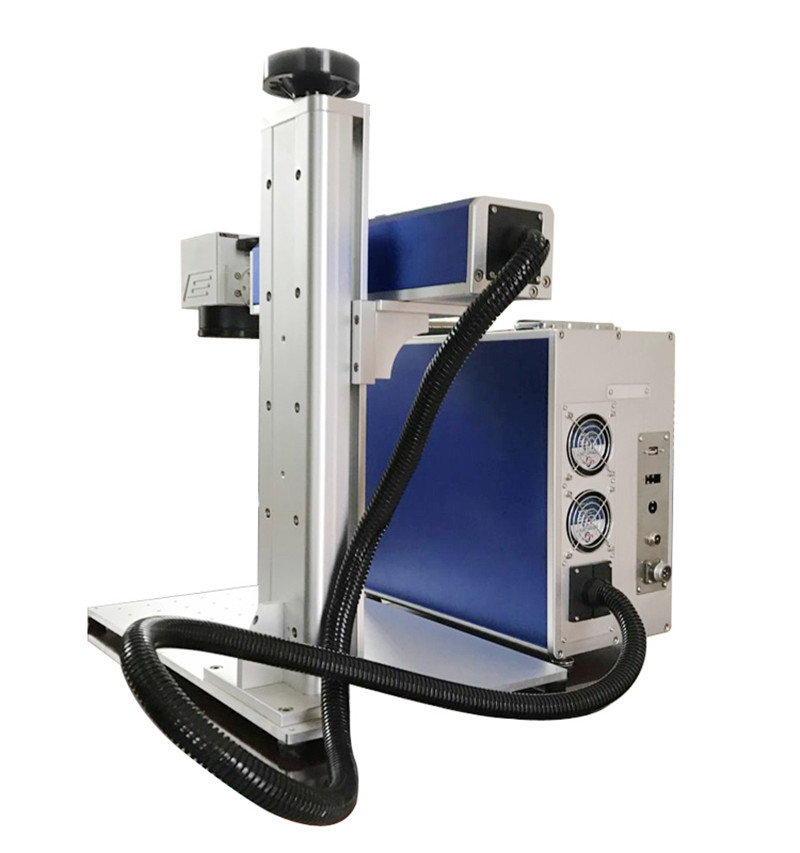

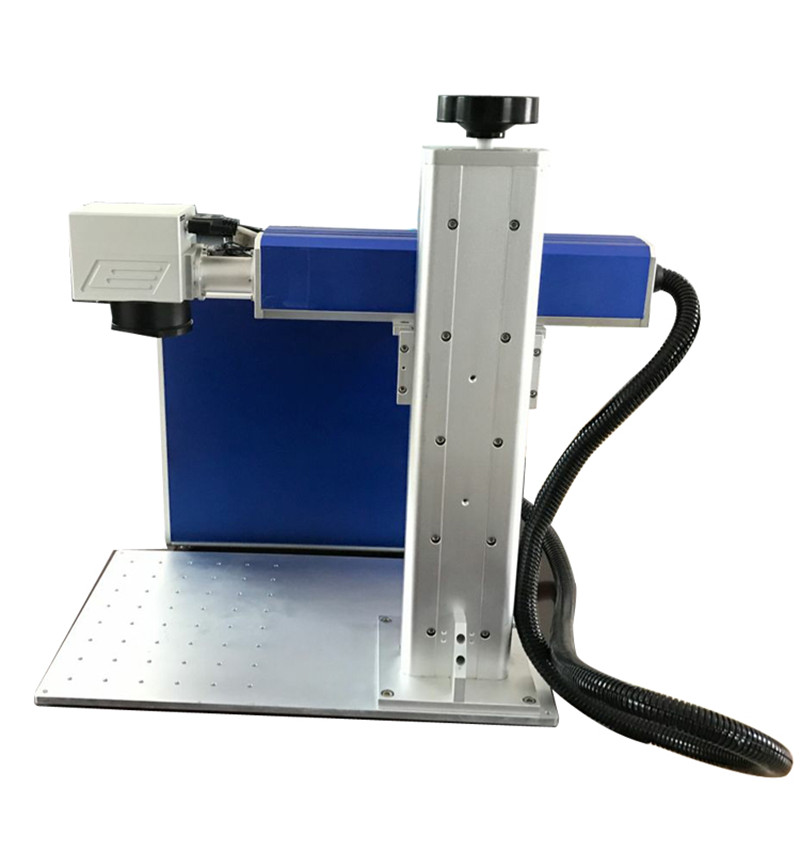

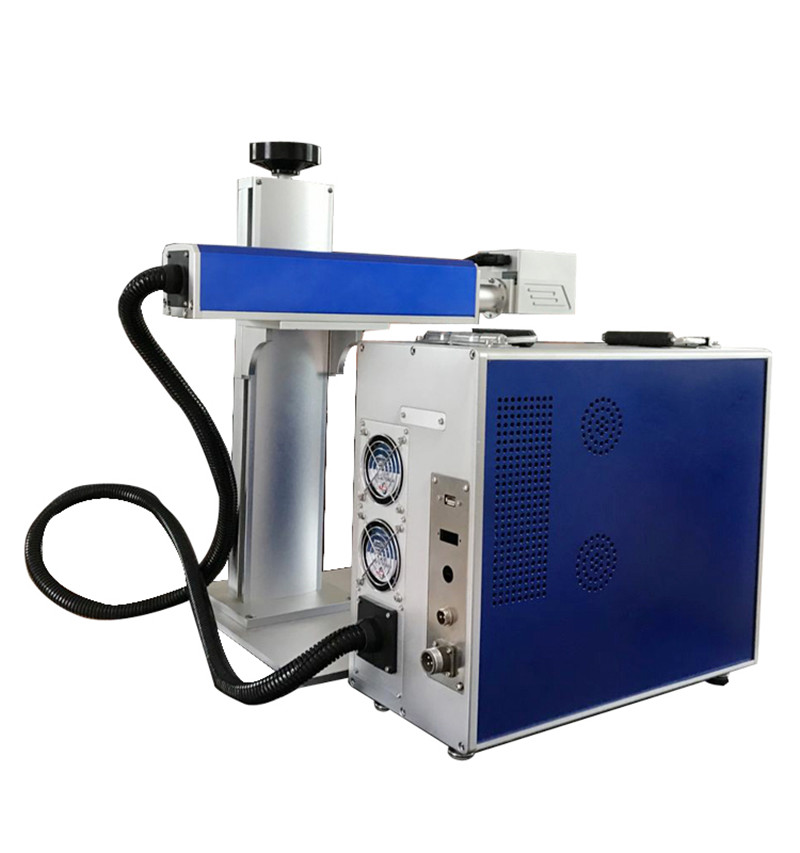

20W Separate type fiber marking machine Metal making machine
Quick Details
Application: Laser Marking
Laser Type: Fiber Laser
Working Accuracy: ±0.003mm, 0.01mm
Graphic Format Supported: AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Condition: New
CNC or Not: Yes
Cooling Mode: Air Cooling
Control Software: EZCAD
Certification: CE, FDA
Laser Source Brand:Raycus
Control System Brand: Raycus
Key Selling Points: Long Service Life
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Retail, Construction works , Advertising Company
After Warranty Service: Online support
Local Service Location: None
Showroom Location: None
Marking Area: 250mm*250mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components: Laser Source
Power(W):: 20W/30W/50W
Model Number:: Portable laser marking machine, fiber marking machine
Marking depth:: ≤1.2mm
Minimum Line Width:: 0.012mm
Minimum Character:: 0.15mm*0.15mm
Marking speed: 800 standard characters/ second
The output power: 10%-100%:
interfaces: USB
Fiber marker is mainly composed of laser, vibrating lens and marking card. It uses laser fiber laser to produce laser marking machine. The beam quality is good, its output center is 1064nm, and the whole machine life is about 100,000 hours. Compared with other types of laser marking The device has a longer life span and an electro-optical conversion efficiency of 28% or more. It has a great advantage in conversion efficiency of 2%-10% compared with other types of laser marking machines, and has outstanding performance in energy saving and environmental protection.
Main Features
(1) Small size and compact structure, convenient to move.
(2) Long lifespan of fiber laser source: 100 000 hours
(3) Good scanning galvanometer, with good seal, small volume, compact.
(4) Good Scaps controller, USB interface, swift and stable transmission, can work with a Laptop.
(5) High Precision: up to 0.0012mm, bring you the fantastic and satisfied marking effect.
(6) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.
(7) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
(8) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.
(9) The fiber laser beams no need to adjust the laser optical path
(10) Low consumption: <400W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
(11) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc..
(12) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
(13) Deeper Marking: Max. 1.2mm stainless steel, suitable for the industries which need high precision and depth marking effect.
