| Product Name | 30W Handheld Fiber laser marking machine applications laser marking machine |
| Item NO. | DBJ-KH-SCS-30W |
| Weight | 56 kg = 123.4589 lb = 1975.3419 oz |
| Category | Leaser Engrave > Fiber Marking Machine |
| Creation Time | 2020-07-26 |

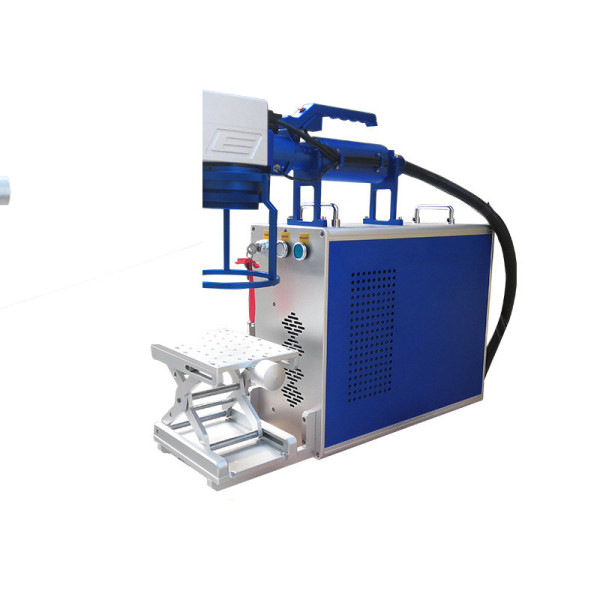

30W Handheld Fiber laser marking machine applications laser marking machine
Perfect fiber laser marking machine is widely for stainless steel marking, carbon steel marking, iron making, aluminum marking,PVC/PC board, hard plastic marking, rubber marking, ceramic marking etc., in the industries of electronic and communication products, IC products, electric lines, cable computer computer components and electric appliance, precision parts, hardware tools, instrument appliance and so on.
Quick Details:
Application: Laser Marking
Laser Type: Fiber Laser
Working Accuracy: ±0.003mm, 0.01mm
Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Condition: New
CNC or Not: Yes
Cooling Mode: Air Cooling
Model Number: Portable laser marking machine, fiber marking machine
Certification: CE, FDA
Marking depth: ≤1.2mm
Minimum Line Width: 0.012mm
Minimum Character: 0.15mm*0.15mm
Marking speed: 800 standard characters/ second
The output power: 10%-100%
interfaces: USB
After-sales Service Provided: Engineers available to service machinery overseas
Power: 10W/20W/30W/50W
|
Product name
|
Fiber laser marking machine
|
||
|
Power
|
10w/ 20w/ 30w/ 50w (optional)
|
||
|
Working area
|
150*150mm, 250*250mm, 300*300mm (optional)
|
||
|
The wavelength
|
1064nm
|
||
|
Marking depth
|
≤1.2mm
|
||
|
Cutting speed
|
0--10000mm/min
|
||
|
Marking Speed
|
800 standard characters/second
|
||
|
Minimum Line Width
|
0.012mm
|
||
|
Minimum Character
|
0.15mm
|
||
|
Repeated Perecision
|
±0.003mm
|
||
|
Life-span of fiber laser module
|
100 000 hours
|
||
|
Beam Quality
|
M2 <1.5
|
||
|
Focus Spot Diameter
|
<0.01mm
|
||
|
Output Power of Laser
|
10%~100% continuously to be adjusted
|
||
|
Power input
|
220V / 50HZ / single phase or 110V / 60HZ / single phase
|
||
|
Optional device
|
Rotary device, Moving table, other customized Automation
|
